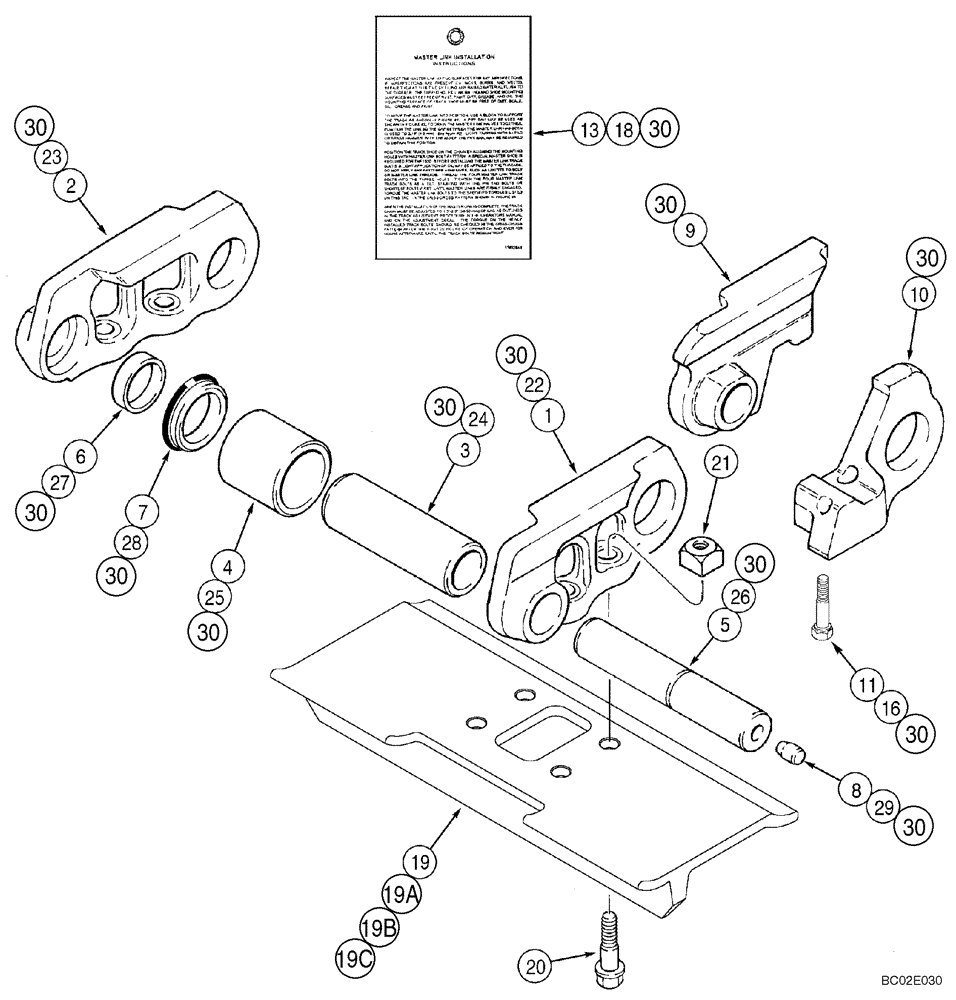

Запчасти Case 850K (05-11) - TRACK CHAIN, EXTENDED LIFE (11) - TRACKS/STEERING

REF

INSTRUCTION

EACH MASTER LINK HAS TWO BOLT HOLES

1шт.

418616A1

CRAWLER TRACK ASSY

457 mm (18 inch); Chain; Incl. Shoes; Incl. 407021A1, Ref 1 - 18; 19, 20, 21

2шт.

418619A1

CRAWLER TRACK ASSY

508 mm (20 inch); Chain; Incl. Shoes; Incl. 407021A1, Ref 1 - 18; 19A, 20, 21

2шт.

418623A1

CRAWLER TRACK ASSY

610 mm (24 inch); Chain; Incl. Shoes; Incl. 407021A1, Ref 1 - 18; 19B, 20, 21

2шт.

418625A1

CRAWLER TRACK ASSY

711 mm (28 inch); Chain; Incl. Shoes; Incl. 407021A1, Ref 1 - 18; 19C, 20, 21

2шт.

407021A1

TRACK CHAIN

Incl. Ref 1 - 18; Order 418500A1, Ref 30

1шт.

1

295178A2

LINK

Right-Hand

39шт.

2

295177A2

LINK

Left-Hand

39шт.

3

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

54mm (2-1/8 in) OD

40шт.

4

323875A1

BUSHING,54.44mm ID x 76.2mm OD x 59mm L

40шт.

5

R51131

PIN,33.48mm OD x 183.5mm L

40шт.

6

R51132

SPACER

80шт.

7

R50830

OIL SEAL

80шт.

8

R50441

PLUG

40шт.

299237A1

KIT

Master Link; Right-Hand; Incl. Ref 9 - 13

1шт.

NSS

NOT SOLD SEPARAT

Link Assy; Master; Right-Hand; Incl. Ref 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link; Fits Over Track Pin On Outside Of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link; Fits Over Bushing On Inside Of Regular Track Link

1шт.

11

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

5/8 NF x 3-1/4

2шт.

13

178328A3

TAG

Installation Instructions

1шт.

299234A1

KIT

Master Link; Left-Hand; Incl. Ref 14 - 18

1шт.

NSS

NOT SOLD SEPARAT

Link Assy; Master; Left-Hand; Incl. Ref 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Link; Fits Over Track Pin On Outside Of Regular Track Link; Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Link; Fits Over Bushing On Inside Of Regular Track Link; Not Illustrated

1шт.

16

295325A1

BOLT,Hex, 5/8" - 18 x 3 1/4"

5/8 NF x 3-1/4

2шт.

18

178328A3

TAG

Installation Instructions

1шт.

19

328942A1

TRACK SHOE

457 mm (18 inch)

40шт.

19a

328943A1

TRACK SHOE

508 mm (20 inch)

40шт.

19b

328945A1

TRACK SHOE

610 mm (24 inch)

40шт.

19c

328946A1

TRACK SHOE

711 mm (28 inch)

40шт.

20

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8

156шт.

21

R25688

SQUARE NUT

5/8 NF; Not Used On Master Link Bolts

156шт.

21a

345-140

SEALANT

No. 847, 1 Pint; For Link Pin Bores; Not Illustrated

1шт.

REF

INSTRUCTION

CHAIN UNIT KIT

1шт.

304484A2

REPAIR KIT

Incl. Ref 22 - 29, Instructions

1шт.

22

295178A2

LINK

Right-Hand

1шт.

23

295177A2

LINK

Left-Hand

1шт.

24

114402A1

BUSHING,33.8mm ID x 53.82mm OD x 109.5mm L

54mm (2-1/8 in) OD

1шт.

25

323875A1

BUSHING,54.44mm ID x 76.2mm OD x 59mm L

1шт.

26

R51131

PIN,33.48mm OD x 183.5mm L

2шт.

27

R51132

SPACER

4шт.

28

R50830

OIL SEAL

4шт.

29

R50441

PLUG

2шт.

REF

INSTRUCTION

LINK KIT

1шт.

30

418500A1

TRACK CHAIN

Link Service Kit; Incl. 407021A1, Ref 1 - 18

1шт.
