Запчасти Case 850K (02-10) - CYLINDER BLOCK (02) - ENGINE

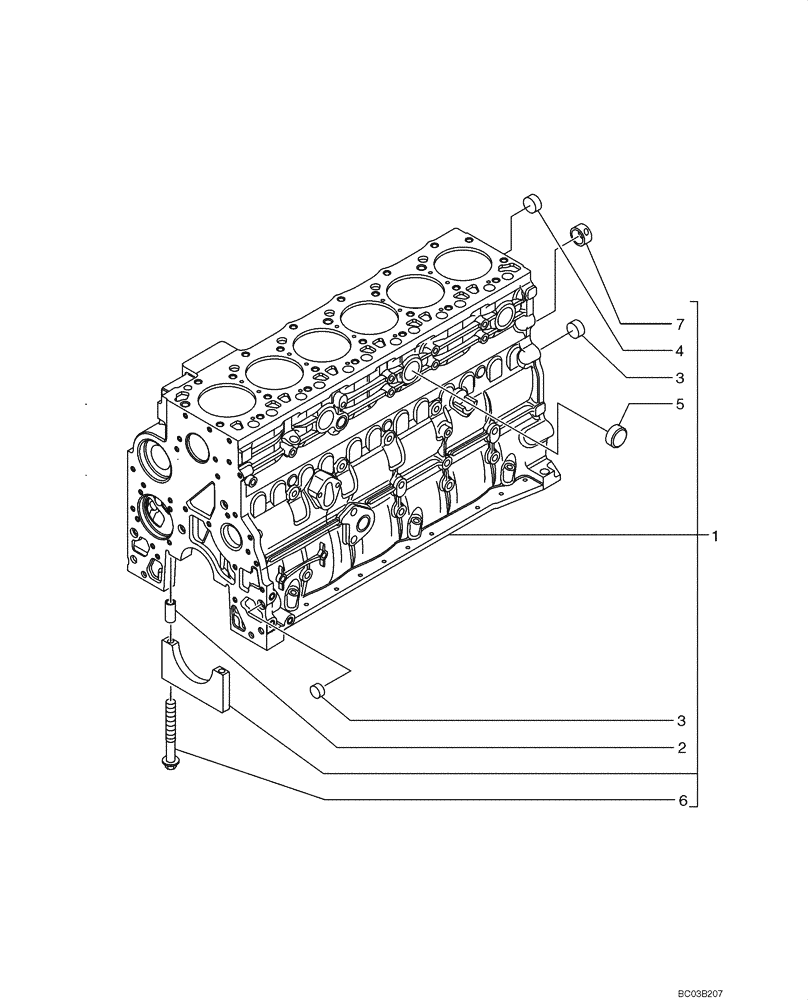

Схема запчастей Case 850K - (02-10) - CYLINDER BLOCK (02) - ENGINE
2
1
3
5
4
7
3
6

Артикул

Название

Примечание

Количество

1

2830076

CYLINDER BLOCK,6 Cylinders

Incl. 2 - 7

1шт.

NSS

NOT SOLD SEPARAT

CAP MAIN BEARING

5шт.

2

4899026

DOWEL,M18 x 10

4-14шт.

3

4895039

EXPANSION PLUG,M17.73

3шт.

4

4895038

EXPANSION PLUG,M58.06

6шт.

5

4895228

EXPANSION PLUG,35.23mm x 7.94mm

3шт.

6

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

14шт.

7

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

Camshaft One In Front One In Rear

2шт.

Выбрано товаров: 8
