Запчасти Case 850K (09-49) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

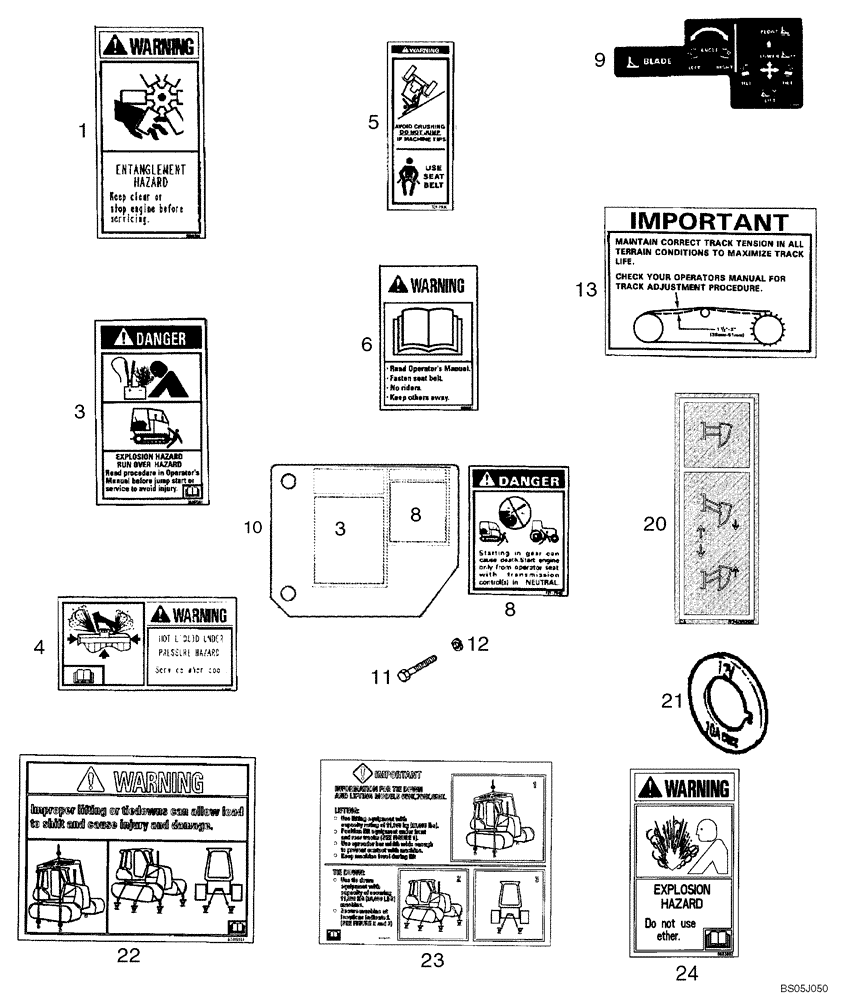

Схема запчастей Case 850K - (09-49) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
10
3
20
23
12
3
4
5
21
6
22
9
11
1
24
13
8
8

Артикул

Название

Примечание

Количество

1

334033A1

DECAL

Warning; Entanglement Hazard

2шт.

3

389737A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389742A1

DECAL

Warning; Radiator Cap

1шт.

5

124269A1

DECAL

Warning; Do Not Jump

1шт.

6

87352601

DECAL

Warning; Read the Operator's Manual; Replaces 333999A2

1шт.

8

124279A1

DECAL

Danger; Engine Start Warning

1шт.

9

87421170

DECAL

Dozer Blade Control Pattern

1шт.

10

87451954

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With Ref 3, 8, 11, 12

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Replaces M12 x 25 614-12025 Bolt Used On Some Models

2шт.

12

892-11010

LOCK WASHER,M10

Replaces M12 892-11012 lock washer used on some models

2шт.

13

87355177

DECAL

Important; Track Tension; Replaces 87421172

1шт.

20

87408298

DECAL

Ripper Control Pattern

1шт.

21

76067229

DECAL

At 12V Plug Receptacle; Cab Models

1шт.

22

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

23

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

24

8603093

WARNING DECAL

Explosion Hazard, Do Not Use Ether

1шт.

Выбрано товаров: 16
