Запчасти Case 850K (09-48) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

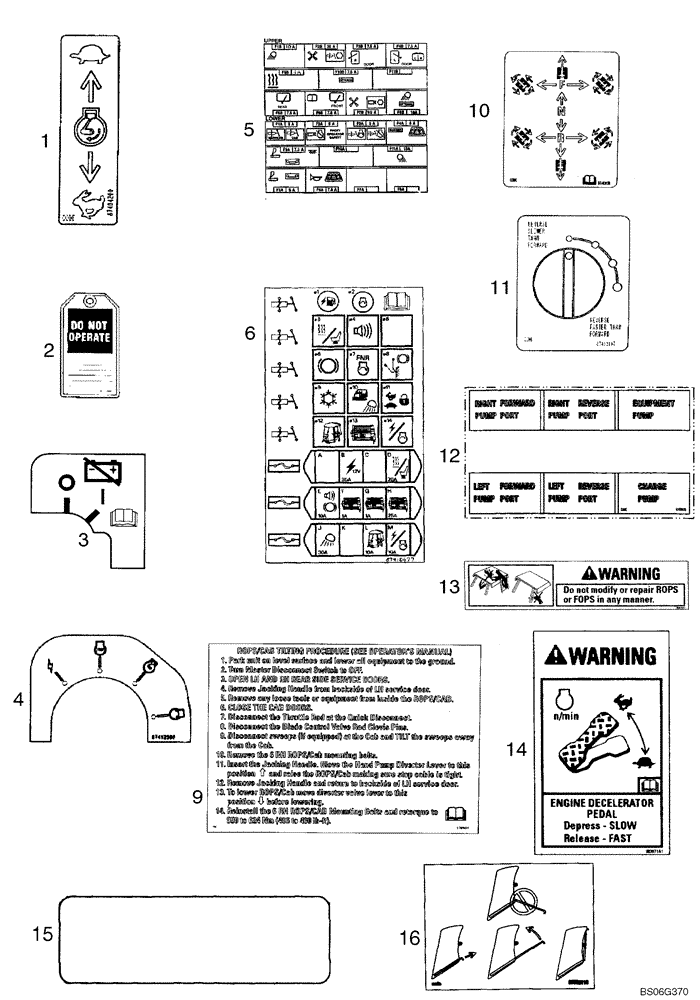

Схема запчастей Case 850K - (09-48) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
11
4
9
15
16
12
14
3
6
13
5
2
1
10

Артикул

Название

Примечание

Количество

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

2

321-4614

TAG

Do Not Operate Tag

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87415509

DECAL

Fuse/Relays, In Cab/Canopy Assembly

1шт.

6

87441773

DECAL

Fuse/Relays

1шт.

9

87355186

DECAL

Canopy/Cab Tilting Procedure; Replaces 87421180

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87421178

DECAL

Reverse Controller

1шт.

12

87421176

DECAL

Diagnostics

1шт.

13

87454611

DECAL

Warning, Do Not Modify or Repair ROPS or FOPS In Any Manner; Replaces 383972A1

1шт.

14

87453591

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in)

2шт.

16

87550110

DECAL

Console Lockup Kit Instruction 50.0 mm x 66.0 mm

1шт.

Выбрано товаров: 14
