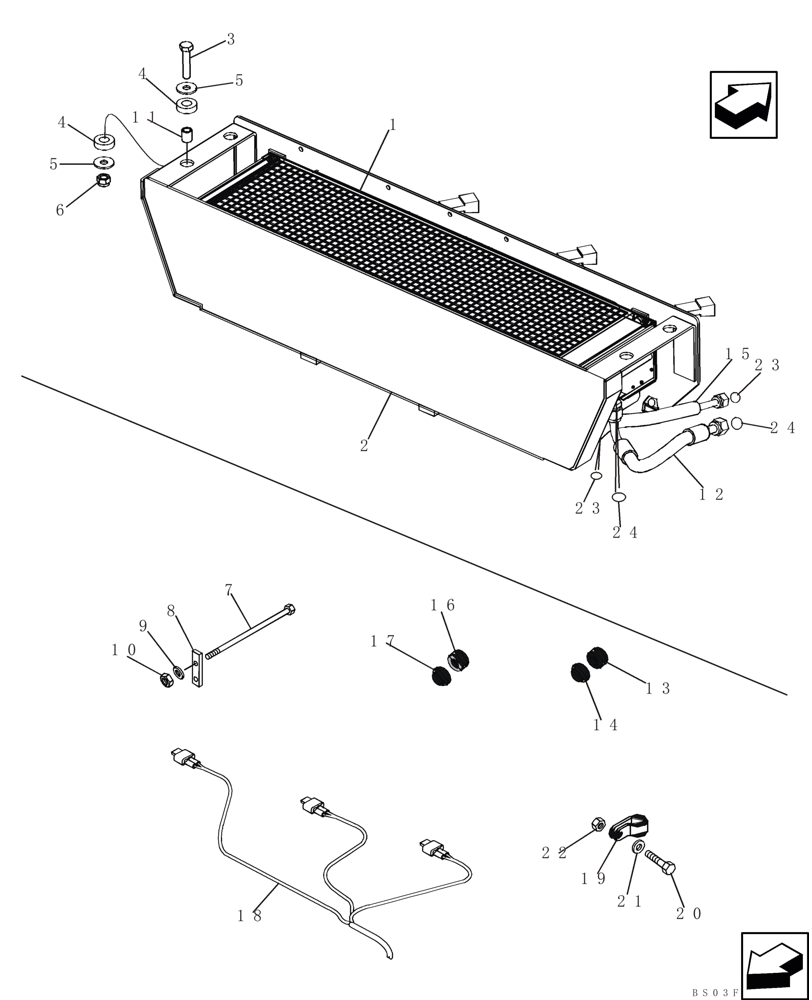

Запчасти Case 850K (09-40[01]) - CAB - AIR CONDITIONING CONDENSER (09) - CHASSIS/ATTACHMENTS

1

87400724

CONDENSER

For Assembly Breakdown Please See Figure 09-40 02

1шт.

87543791R

REMAN-BLOWER

850K SERIES 2 CRAWLER TIER 2 (1/05-)

3шт.

87543791C

CORE-BLOWER

Return Number

1шт.

2

76076695

SUPPORT

1шт.

3

16160124

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

4

76067945

PAD

Mount

8шт.

5

76067743

WASHER,M10

4шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

7

76067404

TIE-ROD

4шт.

8

76076696

SHIM

2шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

11

76067770

SPACER

4шт.

12

87400798

HOSE

1шт.

13

76067714

RUBBER WASHER

Ring

1шт.

14

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

15

87400799

HOSE,7.94mm ID x 280mm L

1шт.

16

76067405

RUBBER WASHER

Ring

1шт.

17

14497101

WASHER,M20 x 37 x 3

1шт.

18

76066221

WIRE HARNESS

Plugs Into 87410145 Cab Light Harness

1шт.

19

10115701

CLAMP,12mm, Coat, P Type

3шт.

20

13276011

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8

3шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

22

12574211

NUT,M6 x 1, Cl 8

3шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

24

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.
