(09-30) - CAB - COVERS, REAR INTERIOR AND SPEAKERS

Запчасти Case 850K (09-30) - CAB - COVERS, REAR INTERIOR AND SPEAKERS (09) - CHASSIS/ATTACHMENTS

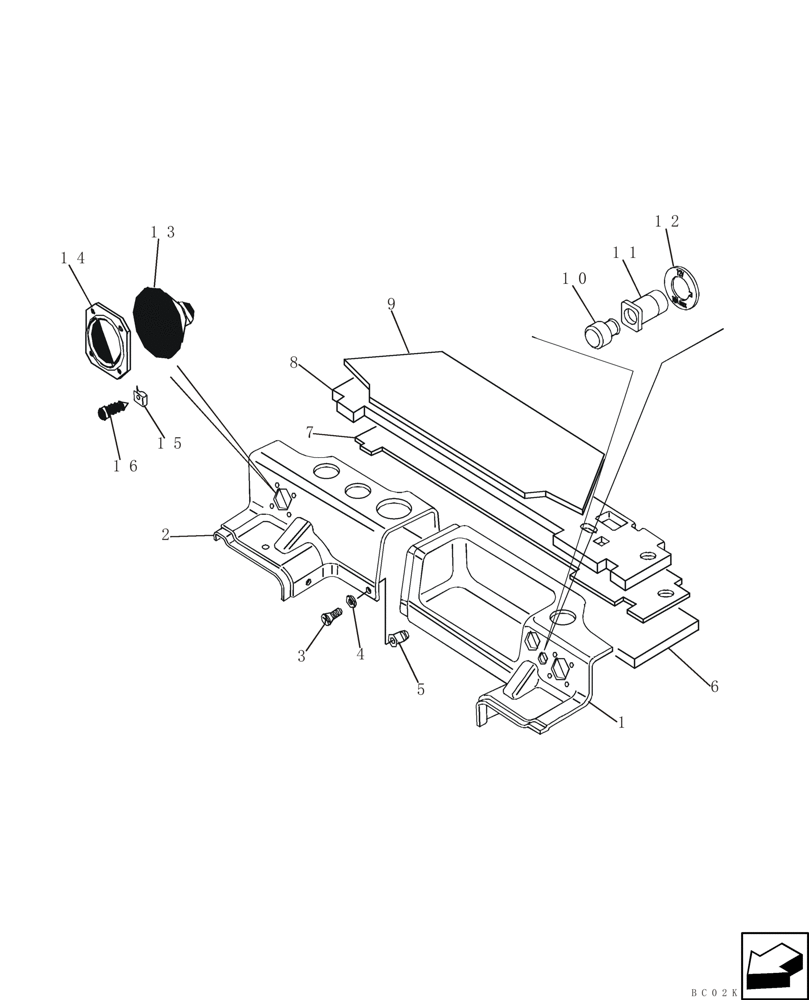

Схема запчастей Case 850K - (09-30) - CAB - COVERS, REAR INTERIOR AND SPEAKERS (09) - CHASSIS/ATTACHMENTS
8
15
11
5
2
16
1
6
bc02k248
14
4
3
7
12
10
13
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76067968

TRIM PANEL

Rear, Left-Hand

1шт.

2

76067970

TRIM PANEL

Rear RH

1шт.

3

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

8шт.

4

79076208

WASHER

Nylon, Black

8шт.

5

15629711

THREADED INSERT,Flat, M6 OD x 15mm L

M6 X 9.5

8шт.

6

76067498

INSULATING PANEL

1шт.

7

87400691

PANEL

1шт.

8

87400692

PANEL

1шт.

9

76067491

INSULATING PANEL

1шт.

10

76067707

PLUG

1шт.

11

76045791

POWER SOCKET

12V Receptacle

1шт.

12

76067229

DECAL

12V

1шт.

13

71483881

KIT

Loudspeaker (q.ty 2 for each kit)

1шт.

14

71490900

KIT

Loudspeaker Grille (q.ty 2 for each kit)

1шт.

15

71485200

SPRING

Nut

8шт.

16

76043518

SCREW,M4.2 x 13mm

8шт.
