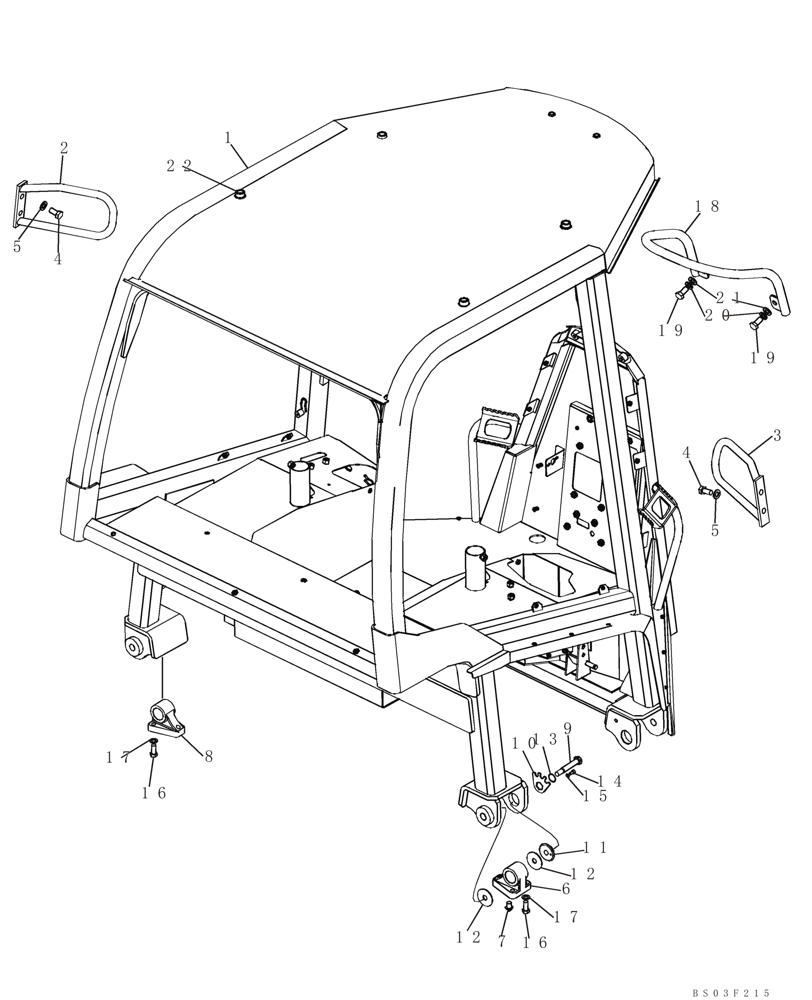

Запчасти Case 850K (09-18) - CANOPY, ROPS - FRAME, MOUNTING AND GRAB HANDLES (09) - CHASSIS/ATTACHMENTS

1

87352961

ROPS

Frame, ROPS Canopy; Replaces 87446653

1шт.

2

87444743

HANDLE

Grab Handle, Left-Hand

1шт.

3

87444747

HANDLE

Grab Handle, Right-Hand

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

86983061

SUPPORT ASSY.

Right-Hand; Includes (2) 79060730 Bushings; With Hole For Alignment Pin, Ref 7

2-4шт.

79060730

BUSHING

2шт.

7

87311743

SPECIAL PIN

Alignment; Right-Hand Side Only, 45.2 mm Long; Replaces 446640A1 50.2 mm Long Pin Used On Some Models

2шт.

8

76067987

SUPPORT

LH; Incl. (2) 79060730 Bushings; Without Hole For Alignment Pin, Ref 7; May Be Replaced with Ref 6 Support on some models

2шт.

79060730

BUSHING

2шт.

9

79093830

SCREW,Hex, M24 x 2 x 150mm

4шт.

10

79093828

PLATE

4шт.

11

79084966

BUSHING

4шт.

12

79085441

WASHER,24.6mm ID x 90mm OD x 5mm Thk

8шт.

13

13398976

SNAP RING,M40, Int

4шт.

14

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

12шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

18

448838A1

HANDLE

Grab Handle, Front

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

22

353-429

PLUG

11/16 in

4шт.
