Запчасти Case 850K (09-16) - SEAT ASSY, AIR SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS

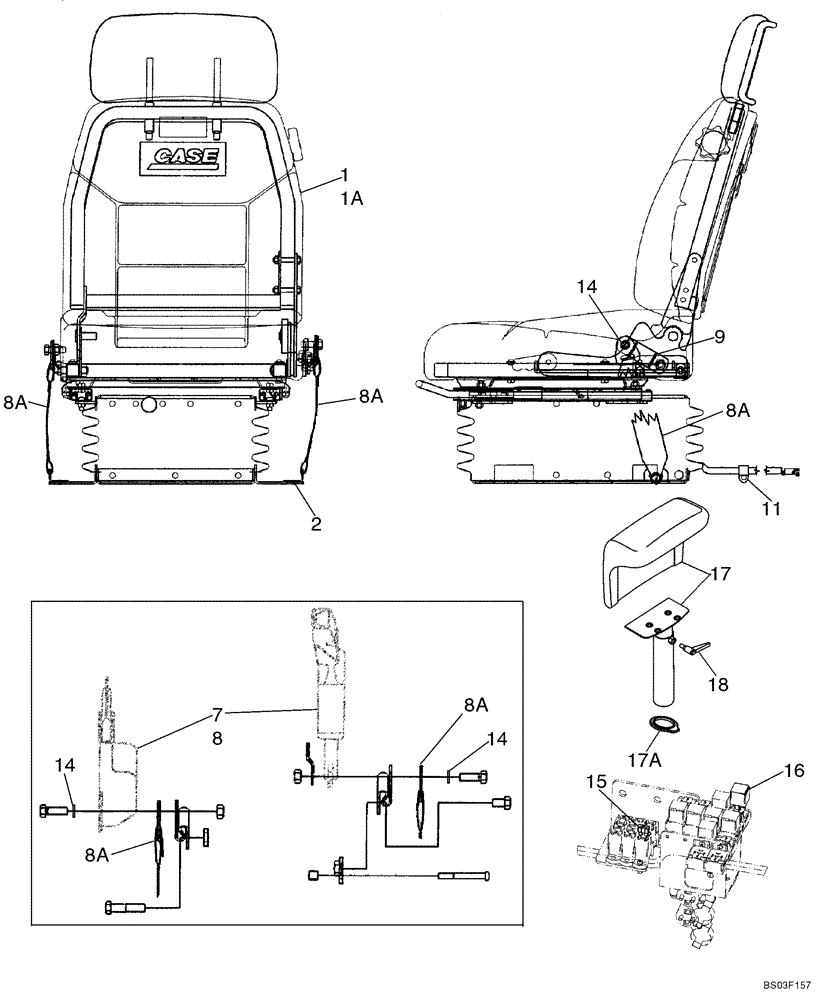

Схема запчастей Case 850K - (09-16) - SEAT ASSY, AIR SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS
8a
8a
8a
11
2
14
7
9
1
17a
14
8
1a
15
16
17
8a
18
8a
14

Артикул

Название

Примечание

Количество

1

446396A2

SEAT ASSY.

Air Suspension; Vinyl; See Figure 09-17

1шт.

1a

429469A2

SEAT ASSY.

Air Suspension; Cloth; See Figure 09-17

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Replaces 854-10025 M10 x 25, 10.9 Bolt Used On Some Models

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

Mounting Hardware Supplied with Seat Assy

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

1шт.

8a

NSS

NOT SOLD SEPARAT

Tether; Included With Ref 7, 8

1шт.

9

D150393

BRACKET

Reinforcement

1шт.

11

49836

CLAMP

1шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

15

A149804

FUSE

30 ampere; Light Green

1шт.

16

314451A1

RELAY

40 amp, 12 V, Heavy Duty

1шт.

17

86989674

ARMREST ASSY.

Includes (1) 87410160 Pad, (1) 86988140 Tube Support, (4) 895-15008 washer, (4) 832-10408 Nut

2шт.

87410160

ARMREST

1шт.

86988140

SUPPORT TUBE

1шт.

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

17a

76067464

SEAL

Seal, Armrest Tube

2шт.

18

87446967

HANDLE

Armrest, Plastic Handle; Replaces 76067236 Metal Handle Used On Some Models

2шт.

87436836

RELAY,12V, 40 Amp

40 amp, 12 V, Heavy Duty; Used With Ref 1A

1шт.

Выбрано товаров: 19
