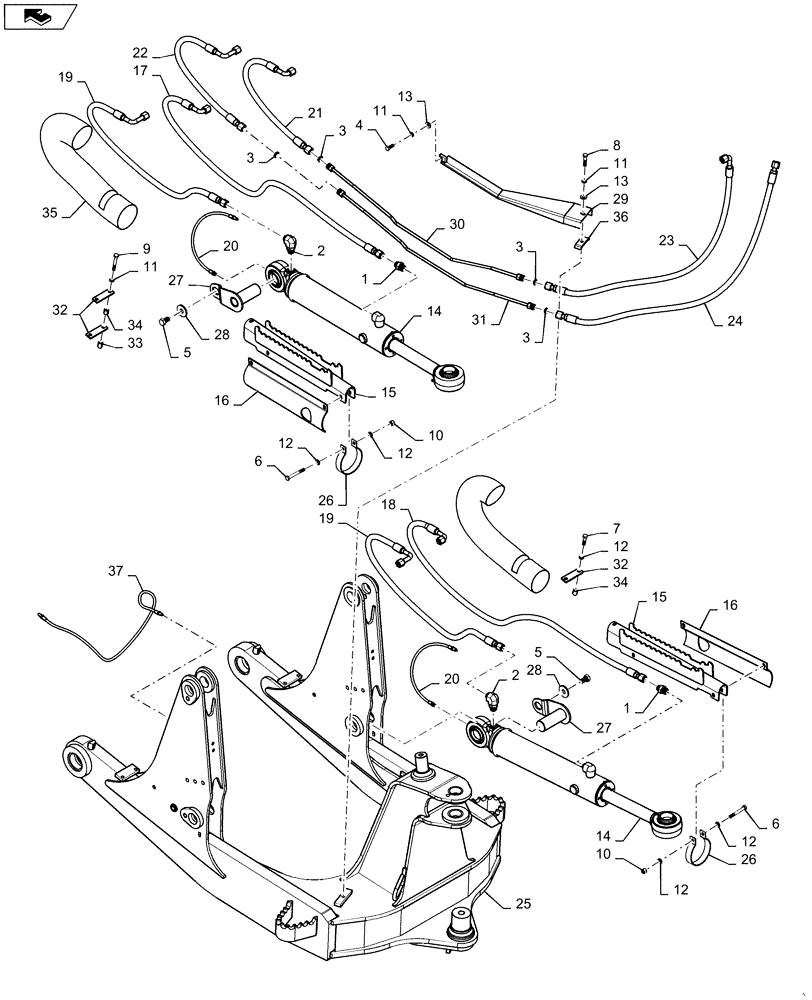

Запчасти Case 850K (09-01) - FRAME, LIFT - CYLINDERS, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Use Loctite No. 271

2шт.

2

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

No. 271, 6 ml

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

6

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

Rod End; Tilt Cylinder

1шт.

9

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

Used As A Shim

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

892-11010

LOCK WASHER,M10

Tilt and Angle Cylinders

6шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Closed End; Angle Cylinder

8шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Lift Cylinder

2шт.

14

84135900

HYDRAULIC CYLINDER,44.4mm Rod, 395.5mm Stroke

1шт.

14

84135900R

REMAN-HYD CYLINDER

Reman for new P/N 84135900

1шт.

14

84135900C

CORE-HYD CYLINDER

Return Number

1шт.

15

84216025

GUARD

Incl. Ref 18, 20, 31, 32, 33; Replaces 430895A1

2шт.

16

84216036

GUARD

2-1/2 x 3 x 1

2шт.

17

87309486

HOSE ASSY.,12.7mm ID x 1460mm L

1-3/4 x 2-1/4 x 1

1шт.

18

87309486

HOSE ASSY.,12.7mm ID x 1460mm L

89 ID x 395 mm Stroke; Lift; See Figure 08-11

1шт.

19

87309487

HOSE ASSY.,12.7mm ID x 975mm L

89 ID x 148 mm Stroke; Tilt; See Figure 08-12

2шт.

20

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

Grease

2шт.

21

87309488

HOSE ASSY.,12.7mm ID x 635mm L

Lift Cylinder

1шт.

22

87309489

HOSE ASSY.,12.7mm ID x 675mm L

LGP Models; If Used

1шт.

23

87309492

HOSE ASSY.,12.7mm ID x 1175mm L

Use Loctite No. 243; LGP Models

1шт.

24

87309493

HOSE ASSY.,12.7mm ID x 1235mm L

1шт.

25

87345906

FRAME ASSY

1шт.

26

132115A1

CLAMP

Use Loctite No. 243

4шт.

27

419205A1

PIN

2шт.

28

419223A1

WASHER

Trunnion Push; Welded

2шт.

29

419625A1

GUARD ASSY.

Pitch; Welded

1шт.

30

426934A1

HYD TUBE

STEP; Welded

1шт.

31

426936A1

HYD TUBE

1шт.

32

435511A1

PLATE

3шт.

33

436109A1

SPACER

2шт.

34

436110A1

SPACER

4шт.

35

445338A1

HOSE PROTECTION,46.00 mm ID x 825.00 mm

3шт.

36

D40236

CLAMP

1шт.

37

L54694

HOSE,4.8mm ID x 1041mm L

1шт.

38

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

2шт.
