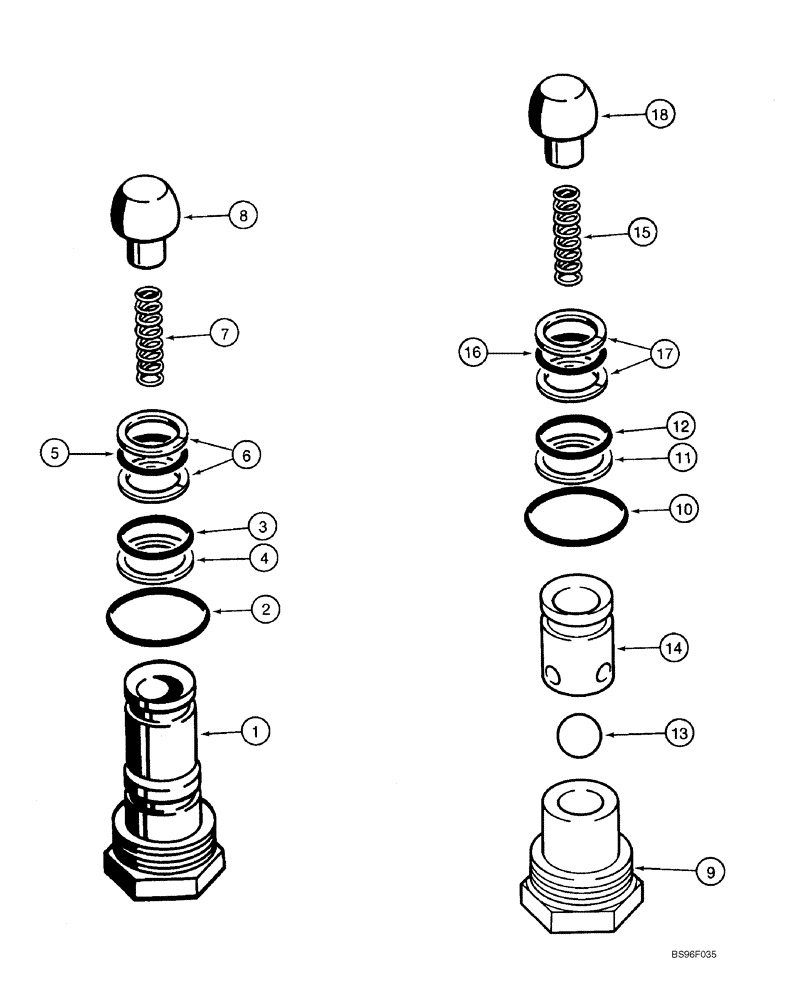

Запчасти Case 850K (08-22) - VALVE ASSY, CHECK - VALVE ASSY, ANTI-CAVITATION (08) - HYDRAULICS

REF

INSTRUCTION

LOAD CHECK VALVE

1шт.

D87307

VALVE

Load Check Valve; Incl. Ref 1 - 8; Lift Section Lower Port; Tilt Section Upper and Lower Ports

3шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

D88725

BACK-UP RING

2шт.

7

H268730

SPRING

1шт.

8

D28576

VALVE POPPET

1шт.

REF

INSTRUCTION

ANTI-CAVITATION VALVE

1шт.

122119A1

KIT

Anti-Cavitation Valve; Incl. Ref 9 - 18; Lift Section Upper Port; Angle Section Upper and Lower Ports

3шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

211-1014

BALL,7/16" Dia

Gr 24; Chrome Alloy Steel

1шт.

14

N7902

RETAINER

1шт.

15

H268730

SPRING

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

17

D88725

BACK-UP RING

2шт.

18

D28576

VALVE POPPET

1шт.
