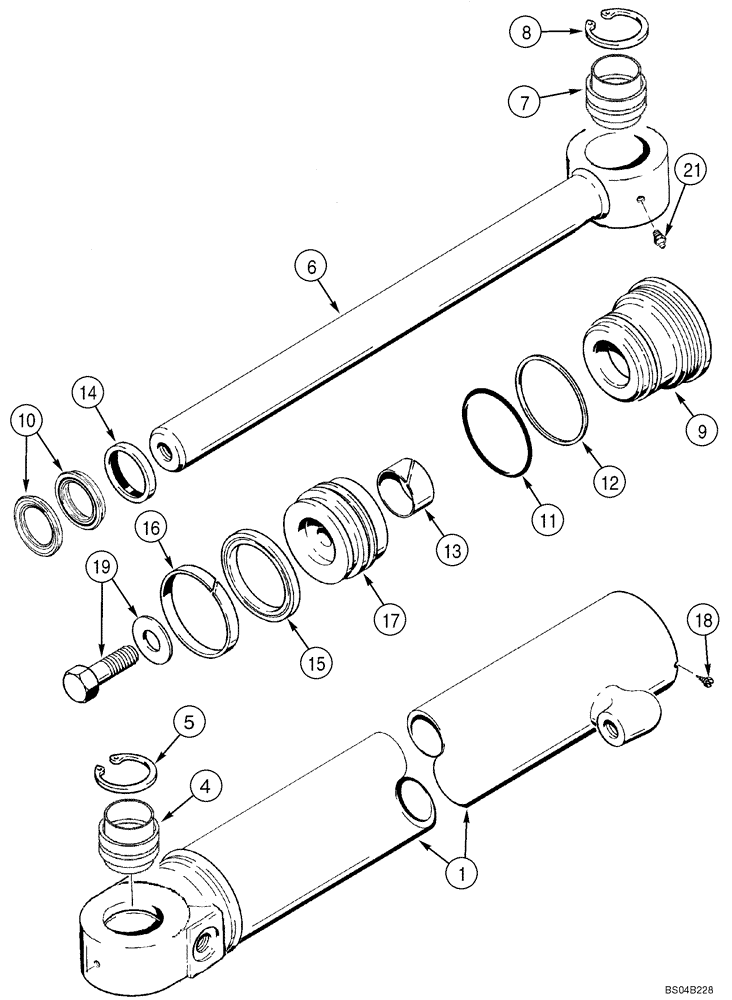

Запчасти Case 850K (08-13) - CYLINDER ASSY - ANGLE (08) - HYDRAULICS

412359A1

CYLINDER ASSY.

89 ID x 396 mm Stroke; Angle; Incl. Ref 1 - 21

2шт.

84135900R

REMAN-HYD CYLINDER

Reman for new P/N 412359A1

2шт.

84135900C

CORE-HYD CYLINDER

Return Number

2шт.

1

87434175

TUBE,88.77 mm ID x 628.6 mm L

Incl. Ref 2, 3

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

6

430296A1

PISTON ROD

45 mm (1-3/4 inch) dia

1шт.

7

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

1шт.

8

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

9

355529A1

GLAND

1шт.

250741A1

SEAL KIT

Incl. Ref 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Seal; Order 250741A1

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

13

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

15

190332A1

SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

17

1986982C1

PISTON

1шт.

18

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
