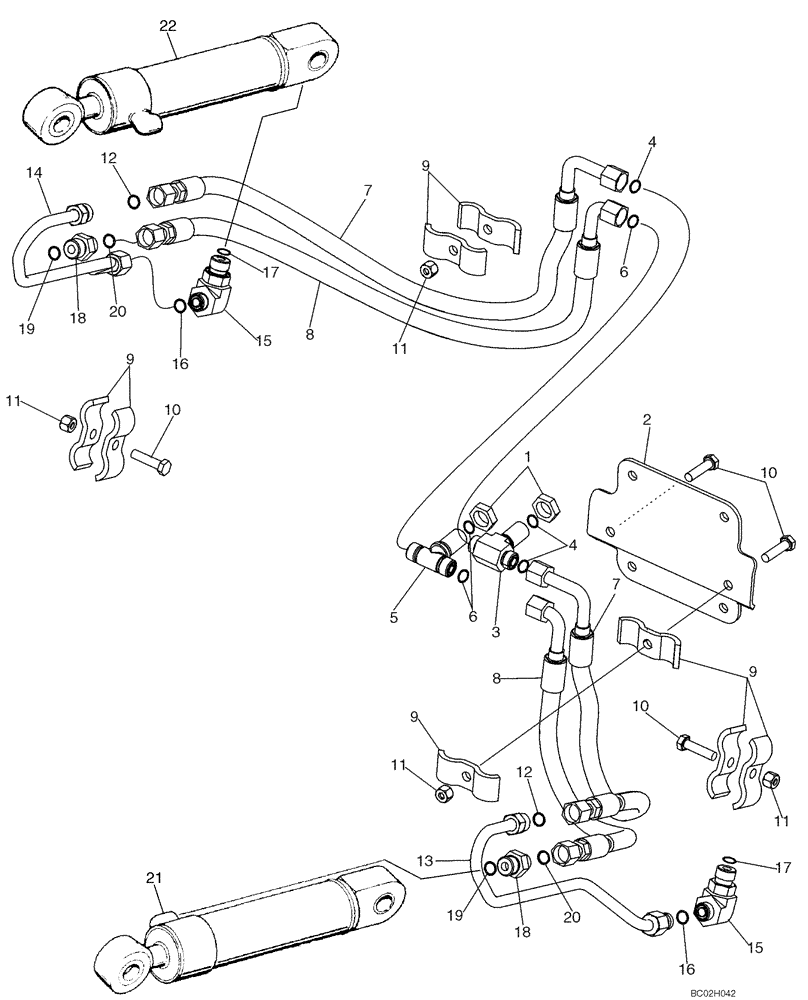

Запчасти Case 850K (08-10) - HYDRAULICS - RIPPER, REAR OF TRACTOR TO CYLINDERS (08) - HYDRAULICS

1

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

2

87436754

COVER PLATE

Use Existing Hardware

1шт.

2

87408658

COVER PLATE

Use Existing Hardware

1шт.

3

201-452

TEE,13/16"-16, Blkhd Br

Incl. Ref 4; Upper Port Of Control Valve

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

3шт.

5

87408137

TEE

Restrictor; Incl. Ref 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

3шт.

7

87405656

HOSE ASSY.

794 mm long; Upper; To Closed End Of Cylinder

2шт.

8

87408851

HOSE ASSY.

775 mm lg; Lower; To Rod End Of Cylinder

2шт.

9

434130A1

HOSE CLAMP

8шт.

10

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

2шт.

13

87405448

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

Right-Hand Cylinder

1шт.

14

87405449

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

Left-Hand Cylinder

1шт.

15

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 16, 17

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

18

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref. 19, 20

2шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Boss End

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

21

86994129

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Right-Hand; Ripper; See Figure 08-14

1шт.

21

86994129R

REMAN-HYD CYLINDER

850K SERIES 2 CRAWLER (TIER 2), 83 ID x 206 mm strk; Right-Hand; Ripper (1/05-)

1шт.

21

86994129C

CORE-HYD CYLINDER

Return Number

1шт.

22

86994131

CYLINDER ASSY.,Double Acting, 44.5mm Rod, 213.3mm Stroke

83 ID x 206 mm strk; Left-Hand; Ripper; See Figure 08-14

1шт.

22

86994131R

REMAN-HYD CYLINDER

SERIES 2 CRAWLER (TIER 2), 83 ID x 206 mm strk; Left-Hand; Ripper (1/05-)

1шт.

22

86994131C

CORE-HYD CYLINDER

Return Number

1шт.
