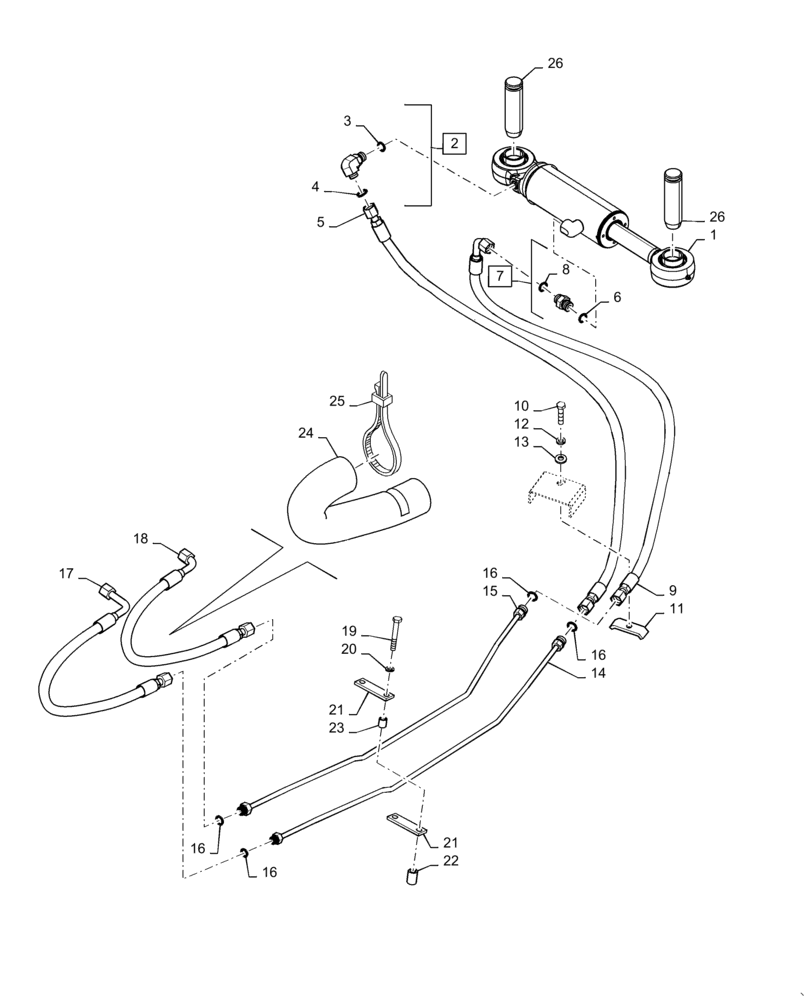

Запчасти Case 850K (08-07) - HYDRAULICS - TILT CIRCUIT (08) - HYDRAULICS

1

412357A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 147.8mm Stroke

89 ID x 148 mm Stroke; Tilt; See Figure 08-12

1шт.

1

412357A1R

REMAN-HYD CYLINDER

850K SERIES 2 CRAWLER (TIER 2) (1/05-)

1шт.

1

412357A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

87309493

HOSE ASSY.,12.7mm ID x 1235mm L

1235 mm (48-5/8 in); Closed End; Outer

1шт.

6

435038A1

HYD CONNECTOR

Incl. Ref 7, 8

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

9

87309492

HOSE ASSY.,12.7mm ID x 1175mm L

1175 mm (46-5/16 in); To Rod End Of Cylinder; Inner

1шт.

10

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

11

D40236

CLAMP

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

14

426936A1

HYD TUBE

To Closed End Of Cylinder

1шт.

15

426934A1

HYD TUBE

To Rod End Of Cylinder

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

17

87309489

HOSE ASSY.,12.7mm ID x 675mm L

675 mm (26-5/8 in); Outer

1шт.

18

87309488

HOSE ASSY.,12.7mm ID x 635mm L

635 mm (25 in)

1шт.

19

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

435511A1

PLATE

2шт.

22

436109A1

SPACER

2шт.

23

436110A1

SPACER

2шт.

24

445338A1

HOSE PROTECTION,46.00 mm ID x 825.00 mm

3шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

26

435157A1

GROOVED PIN,44.42mm OD x 165mm L

Cylinder Attachment

2шт.
