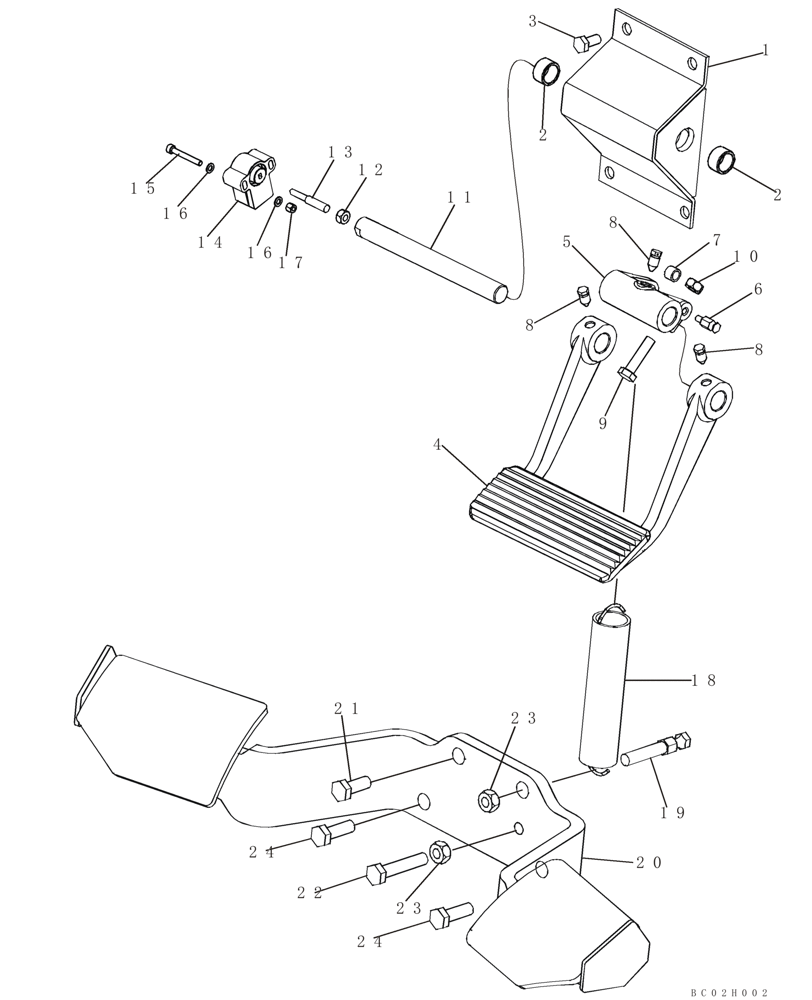

Запчасти Case 850K (07-01) - BRAKES - PEDALS AND LINKAGE (07) - BRAKES

1

76046806

SUPPORT

Incl. Ref 2

1шт.

2

79048068

ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm

20 x 26 x 16 mm

2шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

79089497

PEDAL

Brake

1шт.

5

79103841

HUB

Incl. Ref 6, 7

1шт.

6

79087266

PIN

1шт.

7

79087112

BUSHING,Needle, 10mm ID x 14mm OD x 10mm W

1шт.

8

569475

SCREW

M10; Use With Loctite 243

3шт.

345-199

ADHESIVE

Loctite 243, 1 ml

1шт.

9

514-720

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

10

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

11

79103849

PIN,20mm OD x 200mm L

Shaft

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

411095A1

ROD

Sensor

1шт.

14

87337479

SENSOR

Rotary; Plugs Into Intermediate Microcontroller Harness 426946A1; Replaces 432368A1

1шт.

15

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

Use With Loctite 243

2шт.

345-199

ADHESIVE

Loctite 243, 1 ml

1шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

17

832-10405

NUT,M5 x .8, Cl 8

2шт.

18

435695A1

TENSION SPRING

1шт.

19

79102461

PIN

1шт.

20

76046804

FOOTREST

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

22

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.
