Запчасти Case 850K (04-22) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

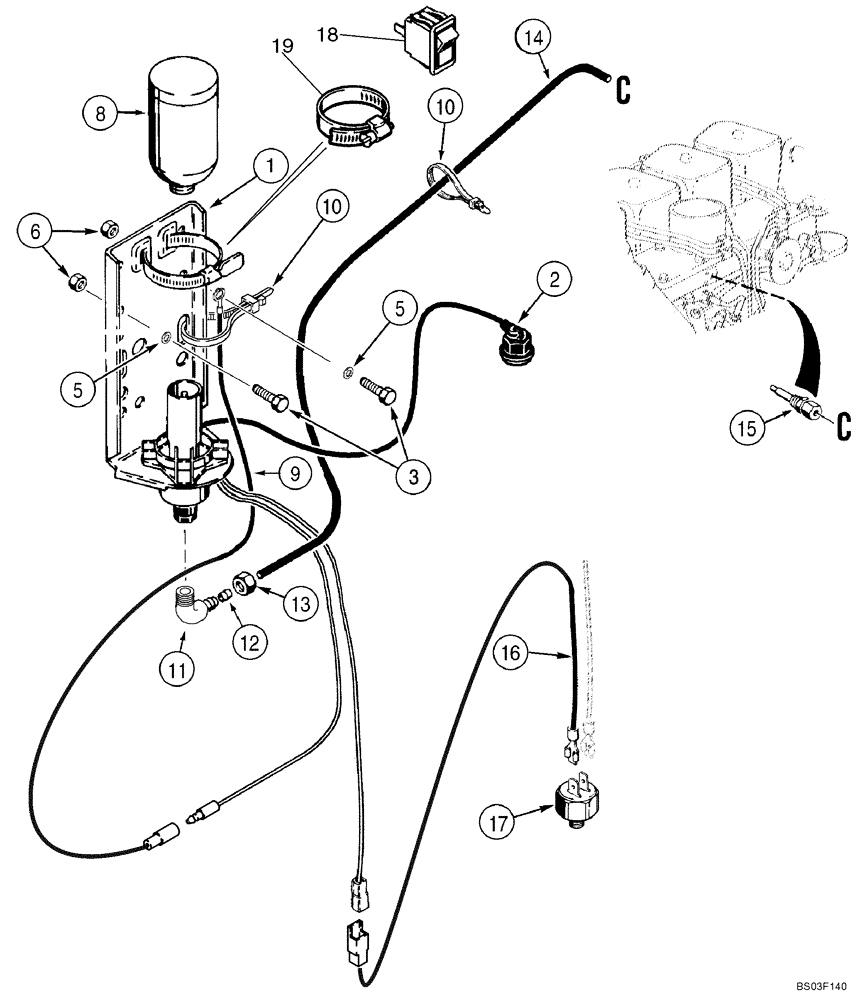

Схема запчастей Case 850K - (04-22) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS
9
15
5
6
18
8
11
14
5
2
1
13
10
19
16
12
10
3
17

Артикул

Название

Примечание

Количество

1

A172116

VALVE

12V, 3 cc; Cold Start Solenoid; Incl. Ref 2

1шт.

2

254729A1

SET OF PARTS

Cap and Cord

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

8

310992A1

START SPRAY FLUID

Ether

1шт.

9

R51632

ELECTRICAL WIRE

WIRE Ground

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 12, 13

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

D145367

TUBE

762 mm (30 in); Cut From L60539X

1шт.

15

A172900

NOZZLE CAP

Atomizer; Component Parts Not Serviced Separately

1шт.

16

182450A1

ELECTRICAL WIRE

WIRE Jumper

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.

18

87411349

SWITCH

Rocker; Cold Start; Replaces 386791A1

1шт.

19

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

3-1/4 - 4-1/8; Replaces Existing Clamp

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.
