Запчасти Case 850K (04-19) - HARNESS, LAMP - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS

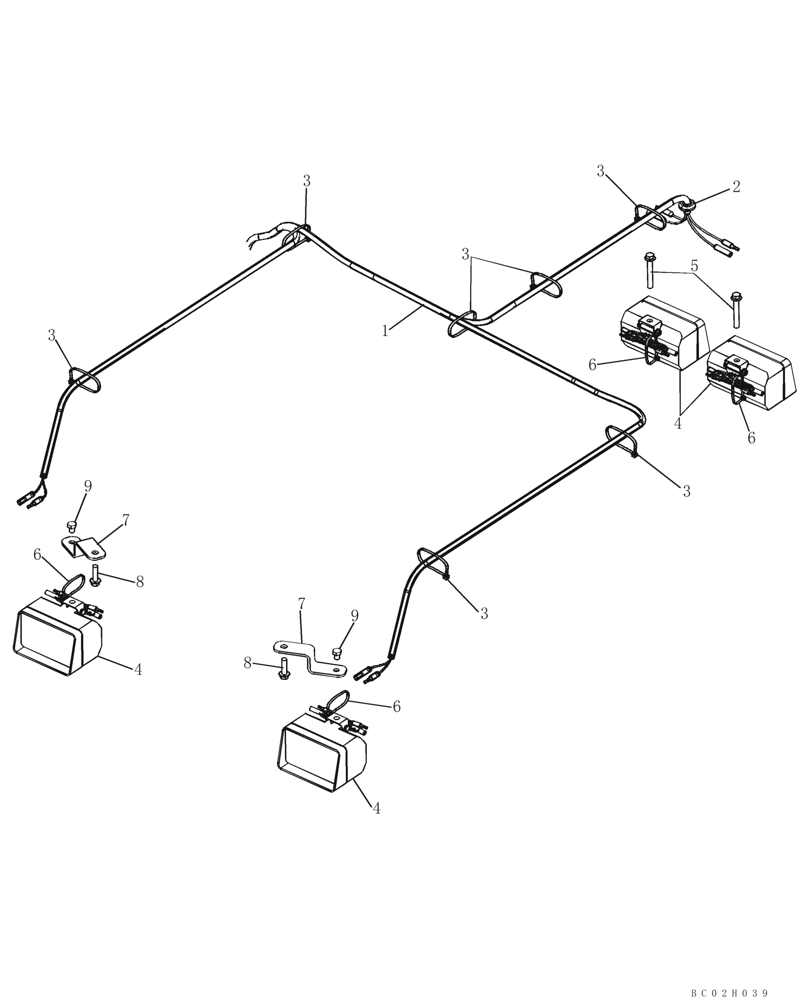

Схема запчастей Case 850K - (04-19) - HARNESS, LAMP - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS
4
6
bc02h039
6
3
3
3
3
3
9
7
5
4
7
1
8
6
2
3
9
4
6
8

Артикул

Название

Примечание

Количество

1

449755A1

WIRE HARNESS

Lamps; Canopy Front and Rear Work and Flood Lamps

1шт.

2

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

Rubber

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

7шт.

4

398847A3

WORK LAMP,Halogen, 12V, 55W, Clear

12V, 55W; Front and Rear Flood and Work Lamps; Incl. 1312210C2 Lamp and 276498A1 Lens

4шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

276498A1

LENS

With Hardened Glass

1шт.

5

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

7

445105A1

BRACKET

Rear Lamps Only

2шт.

8

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

9

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 11
