Запчасти Case 850K (04-15) - HARNESS, CAB - HARNESS, MICROCONTROLLER (04) - ELECTRICAL SYSTEMS

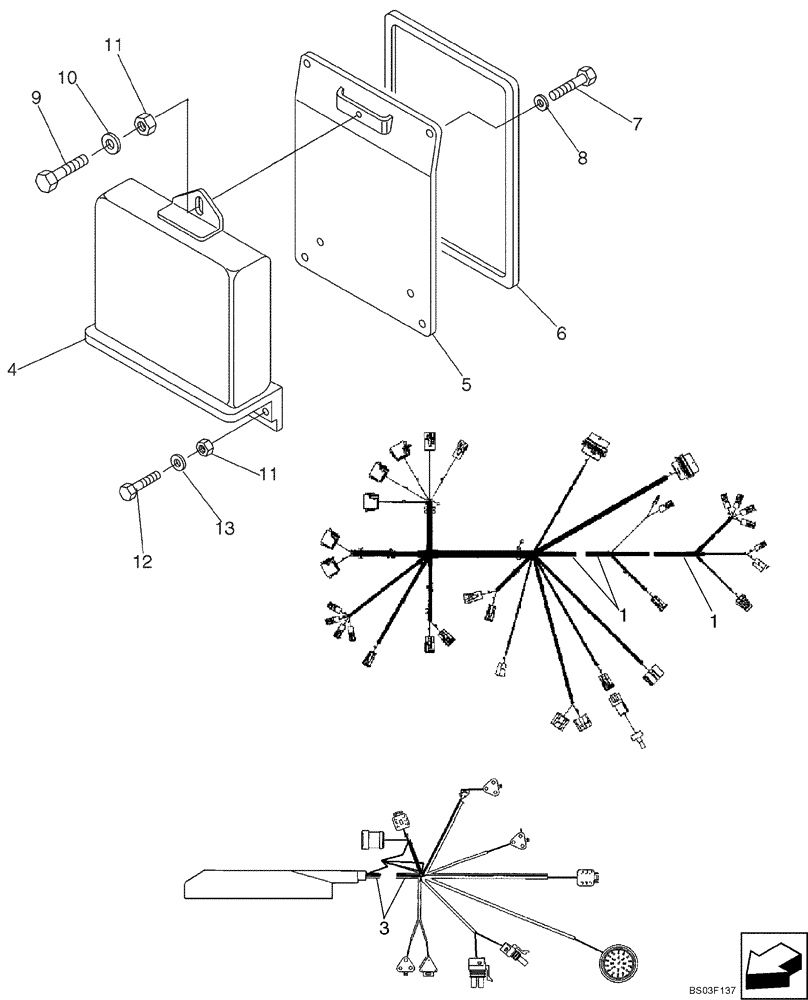

Схема запчастей Case 850K - (04-15) - HARNESS, CAB - HARNESS, MICROCONTROLLER (04) - ELECTRICAL SYSTEMS
11
4
13
10
9
11
12
1
8
6
5
7
3
1

Артикул

Название

Примечание

Количество

87411763

WIRE HARNESS

Cab Main Harness; Incl. 87410122 Harness, (2) 79113969 Proximity Sensors, (2) 79113970 Cables, 87414786 Fan Speed Switch, 87414787 Heater Switch

1шт.

1

87410122

WIRE HARNESS

Harness Main, Cab

1шт.

3

426946A1

WIRE HARNESS

Intermediate Microcontroller Harness (426946A1); Attaches to Main Microcontroller Harness (419302A1)

1шт.

4

373142A1

CONTROL UNIT

Microprocessor Control Box; Component Parts Not Serviced Separately

1шт.

4

373142A1R

REMAN ELECT CONTROL

650K, 750K, 850K, All CRAWLER, Microprocessor Control Box (11/02-)

1шт.

4

373142A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

87400643

PLATE

1шт.

6

76067456

SEAL

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

14496534

WASHER,M8

x 17

4шт.

9

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

10

12035670

LOCK WASHER

3шт.

12

14303921

HEX SOC SCREW,M6 x 70mm, Cl 8.8

2шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

Выбрано товаров: 15
