Запчасти Case 850K (04-12) - HARNESS, FRONT CONSOLE AND SWITCHES - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS

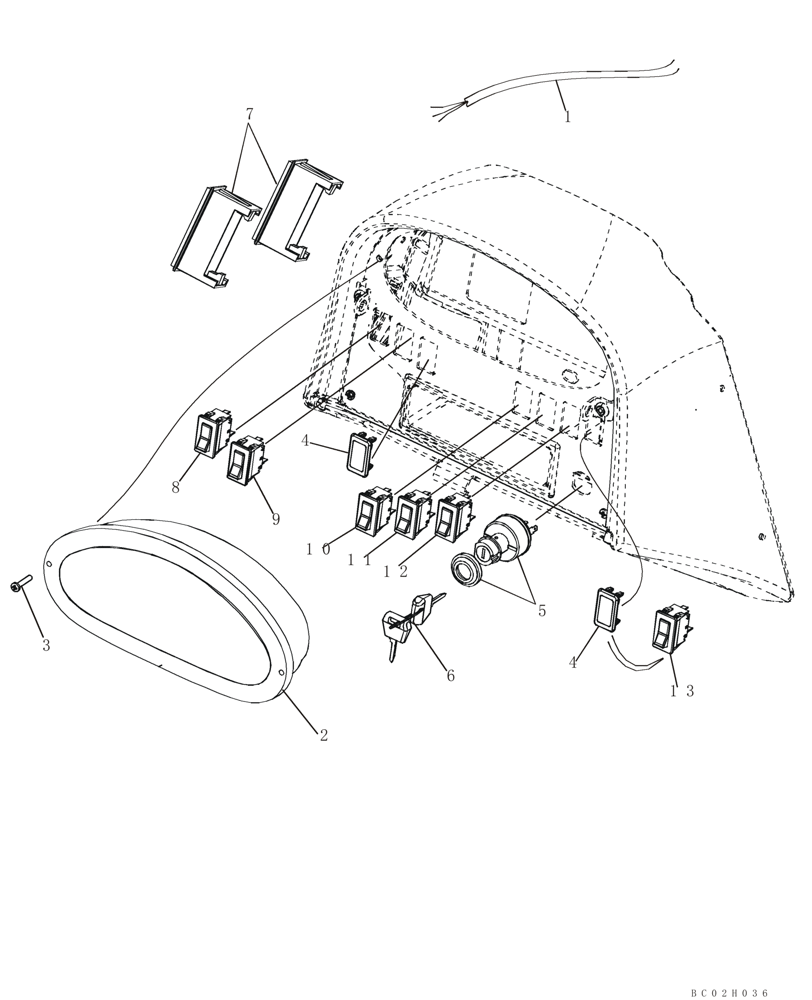

Схема запчастей Case 850K - (04-12) - HARNESS, FRONT CONSOLE AND SWITCHES - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS
11
4
8
9
3
7
5
1
10
12
6
4
bc02h036
2
13

Артикул

Название

Примечание

Количество

1

87400733

WIRE HARNESS

Front Console; Canopy Models

1шт.

2

450438A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument Cluster; See Figure 04-10

1шт.

3

87026656

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

M5 x 25; 4.8

2шт.

4

86000535

PLUG,1.427" x .62", Plastic

Switch Hole

1-2шт.

5

282775A1

IGNITION SWITCH

Incl. Ref 6

1шт.

6

1964831C2

IGNITION KEY

Padded

1шт.

7

76067216

COVER

Fuse Panel

2шт.

A149800

FUSE,10 Amp

10 Amp; Red; Upper Fuse Box

1шт.

A149799

FUSE

7.5 Amp; Brown; Upper Fuse Box

1шт.

A149798

FUSE

5 Amp; Tan; Lower Fuse Box

4шт.

A149799

FUSE

7.5 Amp; Brown; Lower Fuse Box

1шт.

A149800

FUSE,10 Amp

10 Amp; Red; Lower Fuse Box

1шт.

8

133713A1

LIGHT SWITCH

Rocker; Front Work Lamps

1шт.

9

133715A1

LIGHT SWITCH

Rocker; Rear Work Lamps

1шт.

10

87410087

ROCKER SWITCH

Rocker; Momentary, Up/Down

1шт.

11

87410091

ROCKER SWITCH

Rocker; Momentary, Display

1шт.

12

386852A2

SWITCH

Rocker; Horn

1шт.

13

87411349

SWITCH

Rocker; Cold Start; If Used; Replaces 386791A1

1шт.

Выбрано товаров: 18
