Запчасти Case 850K (04-10) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS

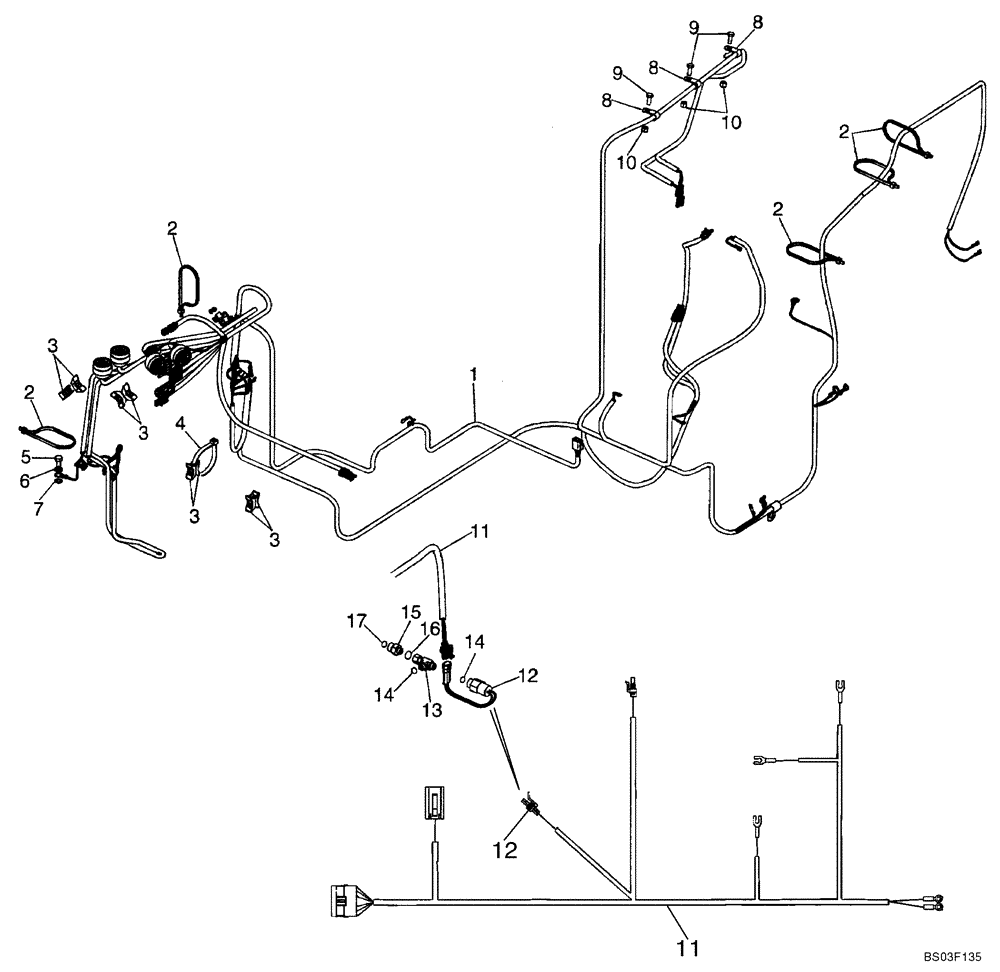

Схема запчастей Case 850K - (04-10) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS
3
9
16
11
8
14
2
8
2
13
3
7
10
12
2
9
5
3
3
17
6
11
10
12
14
1
15
8
2

Артикул

Название

Примечание

Количество

1

418484A1

WIRE HARNESS

Engine

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

3

86982398

SPACER

Nylon Spacer; At Fuse Block, Diodes and Cab and Microcontroller Areas

4шт.

4

87406613

CABLE TIE

CABLE STRAP 50 mm

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

(14.3 mm); Cab Models Only; Located On Hood

3шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20; 10.9

3шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

11

419176A1

WIRE HARNESS

Rear

1шт.

12

87403648

PRESSURE SWITCH

Charge; At Tee On Tandem Pump

1шт.

13

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

At Tandem Pump; Incl. Ref 14

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

15

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

1/4 ORFS x 1/2 ORB; Incl. Ref 16, 17

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

Выбрано товаров: 17
