(04-09) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (Nov 11 2008 11:39AM)

Запчасти Case 850K (04-09) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (Nov 11 2008 11:39AM) (04) - ELECTRICAL SYSTEMS

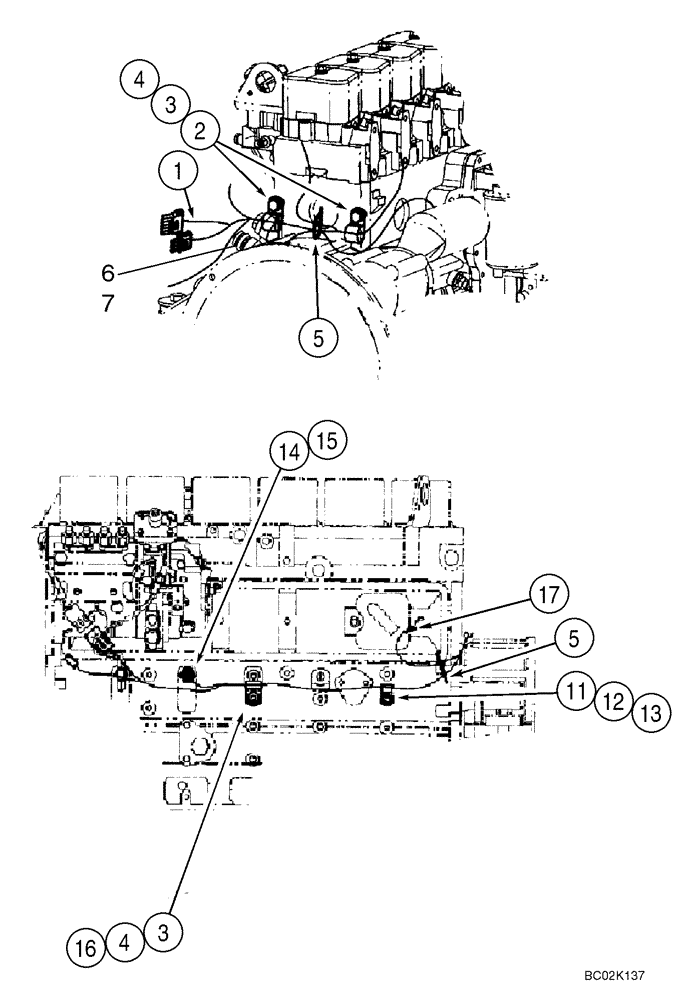

Схема запчастей Case 850K - (04-09) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (Nov 11 2008 11:39AM) (04) - ELECTRICAL SYSTEMS
6
14
13
3
2
12
5
4
11
3
12
17
4
13
7
4
16
5
15
1
3
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

418484A1

WIRE HARNESS

Engine

1шт.

2

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1-1/8 ID

2шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

4

892-11012

LOCK WASHER,M12

3шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

6

A187584

SENSOR

Engine Speed; Attaches to Microcontroller Harness and Flywheel Housing; Incl. Ref 7

1шт.

7

84116C1

NUT

3/4 NF

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

13

892-11008

LOCK WASHER,8mm ID

1шт.

14

277016A1

PRESSURE SWITCH

Engine Oil, Incl. Ref 15

1шт.

15

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

16

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

17

A172117

SWITCH

Ether Temperature

1шт.
