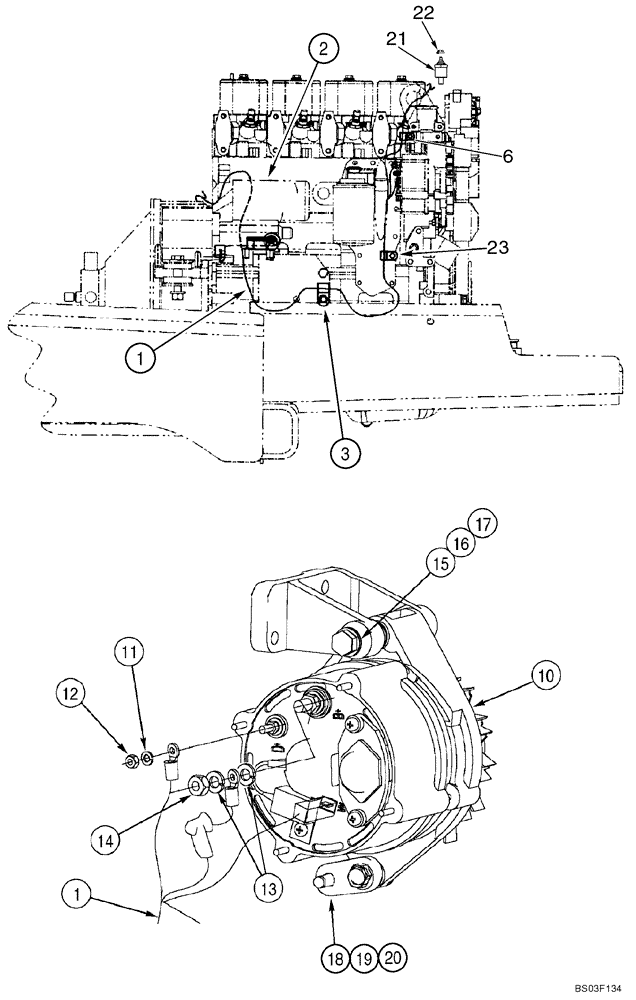

Запчасти Case 850K (04-08) - HARNESS, ENGINE (RIGHT-HAND SIDE) - ALTERNATOR MOUNTING (Sep 9 2010 1:53PM) (04) - ELECTRICAL SYSTEMS

1

418484A1

WIRE HARNESS

Engine

1шт.

2

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01

1шт.

2

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured Starting Motor

1шт.

2

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number, Starting Motor

1шт.

2

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

2

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

10

A187873

ALTERNATOR,12V, 65A

Models Without Air Conditioning; See Figure 04-02

1шт.

10

A187873GV

ALTERNATOR

Value, Models Without Air Conditioning

1шт.

10

A187623

ALTERNATOR

Models With Air Conditioning; See Figure 04-03

1шт.

10

A187623GV

ALTERNATOR

Value, Models With Air Conditioning

1шт.

11

892-11005

LOCK WASHER,M5

1шт.

12

824-1405

NUT,M5, Cl 5

1шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

J902469

SPACER

1шт.

16

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

18

J903089

SUPPORT

1шт.

19

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

2шт.

20

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

1шт.

21

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil Temperature

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

With External Tooth Lock Washer

1шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

.91 ID

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
