Запчасти Case 850K (04-07) - HARNESS, ENGINE - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

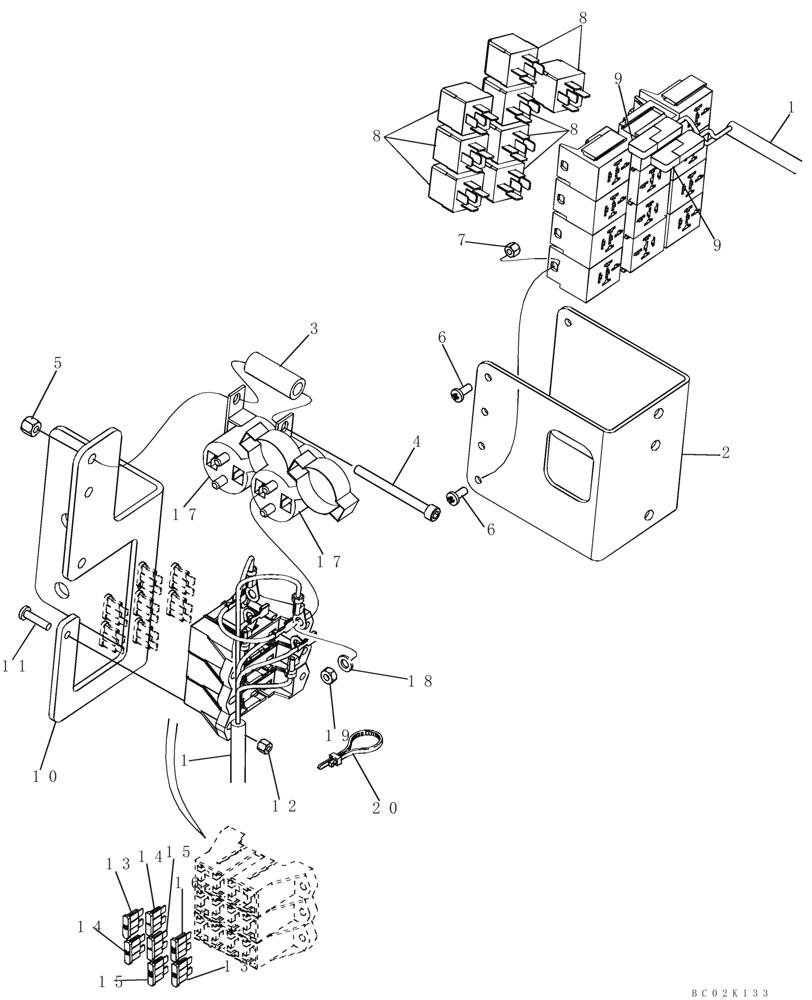

Схема запчастей Case 850K - (04-07) - HARNESS, ENGINE - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS
6
7
1
15
1
3
2
8
10
9
14
11
15
13
20
bc02k133
8
14
13
18
9
16
17
12
17
5
8
19
6
4

Артикул

Название

Примечание

Количество

1

418484A1

WIRE HARNESS

Engine; Incl. Fuse Holders and Terminal Strips

1шт.

1

245435C1

FUSE HOLDER

3шт.

1

506498C1

TERMINAL CONNECTOR

Fuse Block Terminal Strip (Type L11)

3шт.

2

437231A1

BRACKET, SUPPORTING

Relay Mounting

1шт.

3

372610A1

SPACER

2шт.

4

864-6065

HEX SOC SCREW,M6 x 65mm, Cl 8.8

2шт.

5

832-10406

NUT,M6 x 1, Cl 8

2шт.

6

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4.8

4шт.

7

832-10405

NUT,M5 x .8, Cl 8

4шт.

8

314451A1

RELAY

45 amp, heavy duty

11шт.

9

L71879

DIODE ELEMENT,400V, 3A

2шт.

10

437230A1

BRACKET, SUPPORTING

Fuse Mounting

1шт.

11

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

Cl.4.8

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

2шт.

13

A149800

FUSE,10 Amp

10 amp, Red; Ignition Switch and Relay, Serial Range: Power-Solenoids

2шт.

14

A149804

FUSE

30 amp, Light Green

4шт.

15

A187975

FUSE

1 amp, Smoke Color; Sensors and Microcontroller

2шт.

16

A149803

FUSE,25 Amp

25 amp, Clear; Microcontroller

1шт.

17

120399A1

RELAY

100 amp; Starter and Injection Pump Relays

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

21

892-11010

LOCK WASHER,M10

2шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Выбрано товаров: 24
