Запчасти Case 850K (04-06) - BATTERY, DUAL - CAB (Sep 8 2010 3:57PM) (04) - ELECTRICAL SYSTEMS

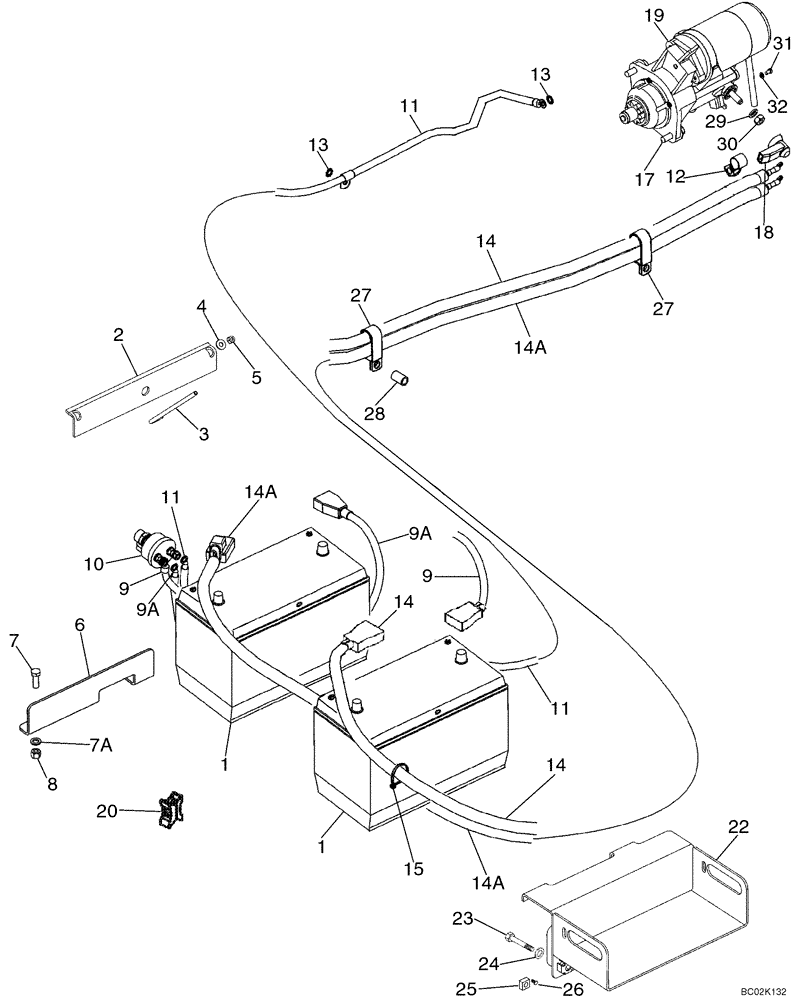

Схема запчастей Case 850K - (04-06) - BATTERY, DUAL - CAB (Sep 8 2010 3:57PM) (04) - ELECTRICAL SYSTEMS
20
14
8
3
30
1
29
28
19
11
14a
12
14
4
5
13
25
7a
13
6
2
14a
10
11
32
15
9a
9
1
18
27
9a
27
31
11
23
14a
14
9
7
17
22
26
24

Артикул

Название

Примечание

Количество

1

BMF31E

DRY BATTERY

12V

2шт.

2

86993151

LARGE PLATE

PLATE, LARGE Plate; Replaces R51648

2шт.

3

416298A1

ROD

4шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

6

417789A1

ANGLE

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

86982902

NEG BATTERY CABLE

1167 mm (46 in); Replaces R47203, 767 mm (30-3/16 in)

1шт.

9a

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

10

R52278

SWITCH

Master Disconnect; Component Parts Not Serviced Separately

1шт.

11

86982704

GROUND CABLE

Negative, 1956 mm (77 in); Engine to Frame; Includes Clamp

1шт.

12

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

13

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

14

R57564

CABLE

Positive, 2261 mm (89 in)

1шт.

14a

432901A1

CABLE ASSY.

Positive, 2660 mm (104-3/4 in)

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

18

L126713

BOOT

1шт.

19

282161A1

STARTING MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

19

282161A1R

REMAN-STARTER,12V, 2.7kW

Reman for New P/N 282161A1

1шт.

19

282161A1C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

20

86982400

SPACER

Nylon Mount

2шт.

22

429992A1

BRACKET, SUPPORTING

1шт.

23

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

24

892-11012

LOCK WASHER,M12

2шт.

25

L116823

NUT

Cage

2шт.

26

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

27

242999A1

CLAMP

2шт.

28

487704R1

SPACER,3/4" Tube x 1 3/16"

1шт.

29

892-11010

LOCK WASHER,M10

1шт.

31

258820A1

SCREW

M5 x 8

1шт.

32

892-11005

LOCK WASHER,M5

1шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

Выбрано товаров: 35
