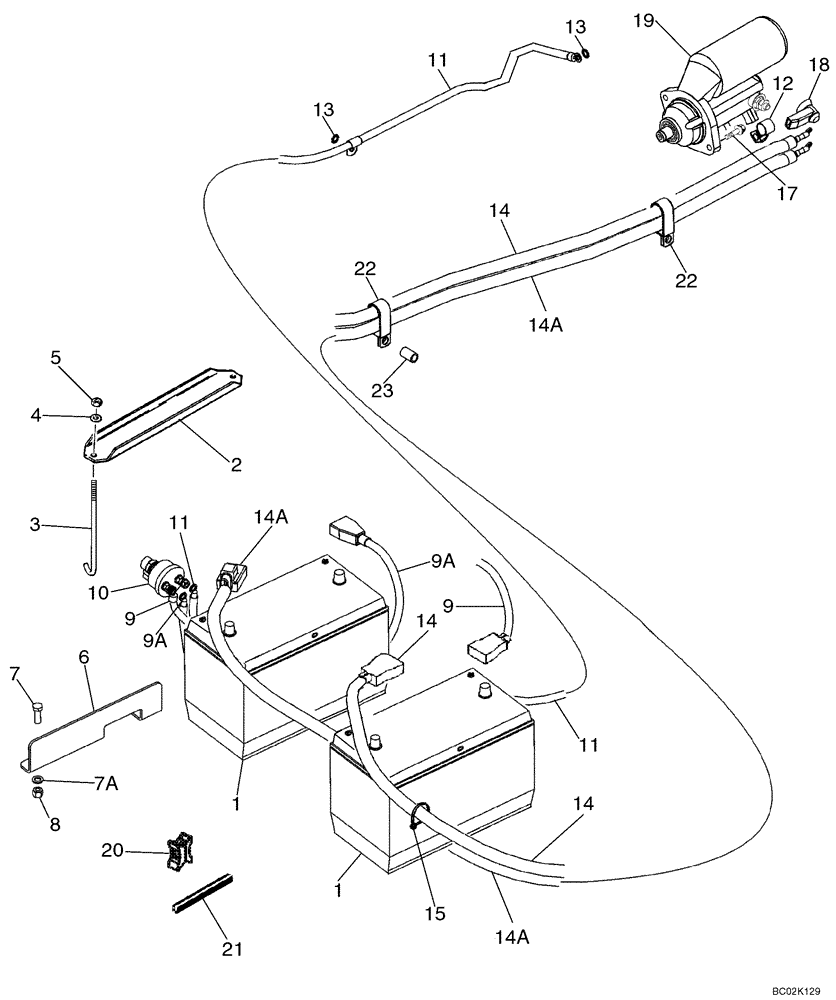

Запчасти Case 850K (04-05) - BATTERY, DUAL - CANOPY, ROPS (Sep 9 2010 1:52PM) (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

2шт.

2

R46490

BRACKET

1шт.

3

416297A1

ROD

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

417789A1

ANGLE

2шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

86982902

NEG BATTERY CABLE

1167 mm (46 in); Replaces R47203, 767 mm (30-3/16 in)

1шт.

9a

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

10

R52278

SWITCH

Master Disconnect; Component Parts Not Serviced Separately

1шт.

11

86982704

GROUND CABLE

Negative, 1956 mm (77 in); Engine to Frame; Includes Clamp

1шт.

12

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

13

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

14

R57564

CABLE

Positive, 2261 mm (89 in)

1шт.

14a

432901A1

CABLE ASSY.

Positive, 2660 mm (104-3/4 in)

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

18

L126713

BOOT

1шт.

19

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01

1шт.

19

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured Starting Motor

1шт.

19

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number, Starting Motor

1шт.

19

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

19

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

20

86982400

SPACER

Nylon Mount

2шт.

21

D40442

MOLDING

Trim, 12 in

1шт.

22

242999A1

CLAMP

2шт.

23

487704R1

SPACER,3/4" Tube x 1 3/16"

3/4 tube

1шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.
