Запчасти Case 850K (04-04) - BATTERY, SINGLE - CABLES (Sep 8 2010 3:57PM) (04) - ELECTRICAL SYSTEMS

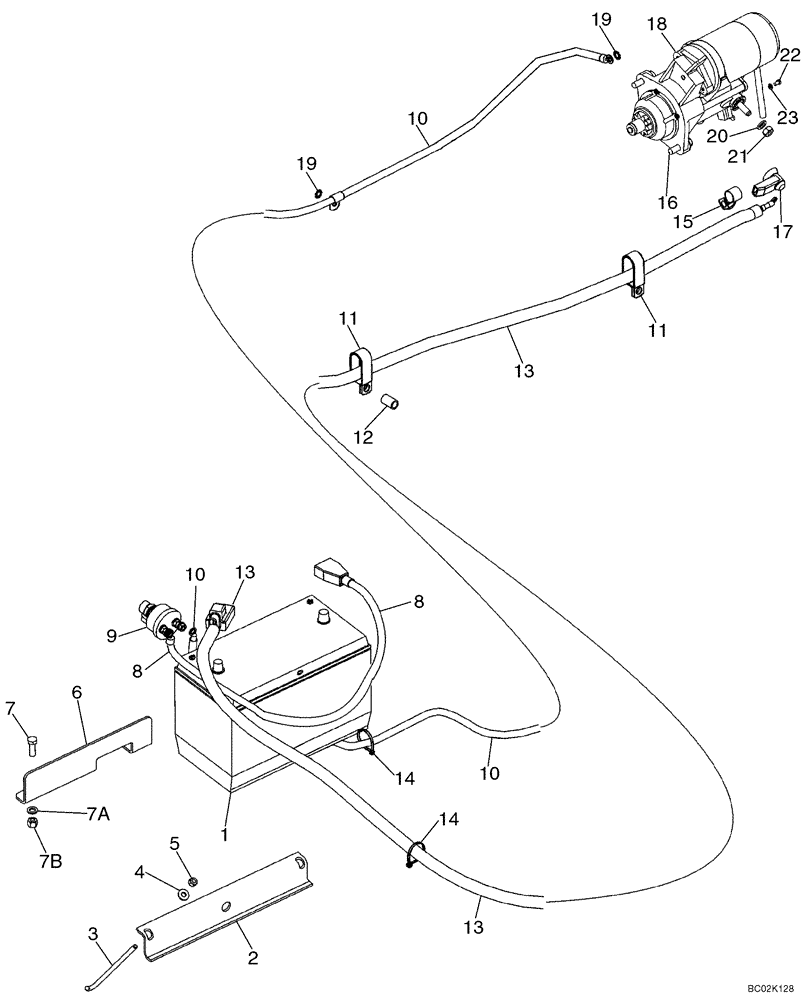

Схема запчастей Case 850K - (04-04) - BATTERY, SINGLE - CABLES (Sep 8 2010 3:57PM) (04) - ELECTRICAL SYSTEMS
7
15
1
10
13
19
10
8
4
23
13
3
7a
19
5
18
10
22
21
7b
17
12
14
11
6
8
13
16
14
20
11
9
2

Артикул

Название

Примечание

Количество

1

BMF31E

DRY BATTERY

12V

1шт.

2

86993151

LARGE PLATE

PLATE, LARGE Plate; Replaces R51648

1шт.

3

416298A1

ROD

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

417789A1

ANGLE

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7b

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

9

R52278

SWITCH

Master Disconnect; Component Parts Not Serviced Separately

1шт.

10

86982704

GROUND CABLE

Negative, 1956 mm (77 in); Engine To Frame; Includes Clamp

1шт.

11

242999A1

CLAMP

2шт.

12

487704R1

SPACER,3/4" Tube x 1 3/16"

3/4 tube

1шт.

13

432901A1

CABLE ASSY.

Positive, 2660 mm (104-3/4 in)

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

15

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

16

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

17

L126713

BOOT

1шт.

18

282161A1

STARTING MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

18

282161A1R

REMAN-STARTER,12V, 2.7kW

Reman for New P/N 282161A1

1шт.

18

282161A1C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

19

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

20

892-11010

LOCK WASHER,M10

1шт.

22

258820A1

SCREW

M5 x 8

1шт.

23

892-11005

LOCK WASHER,M5

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 27
