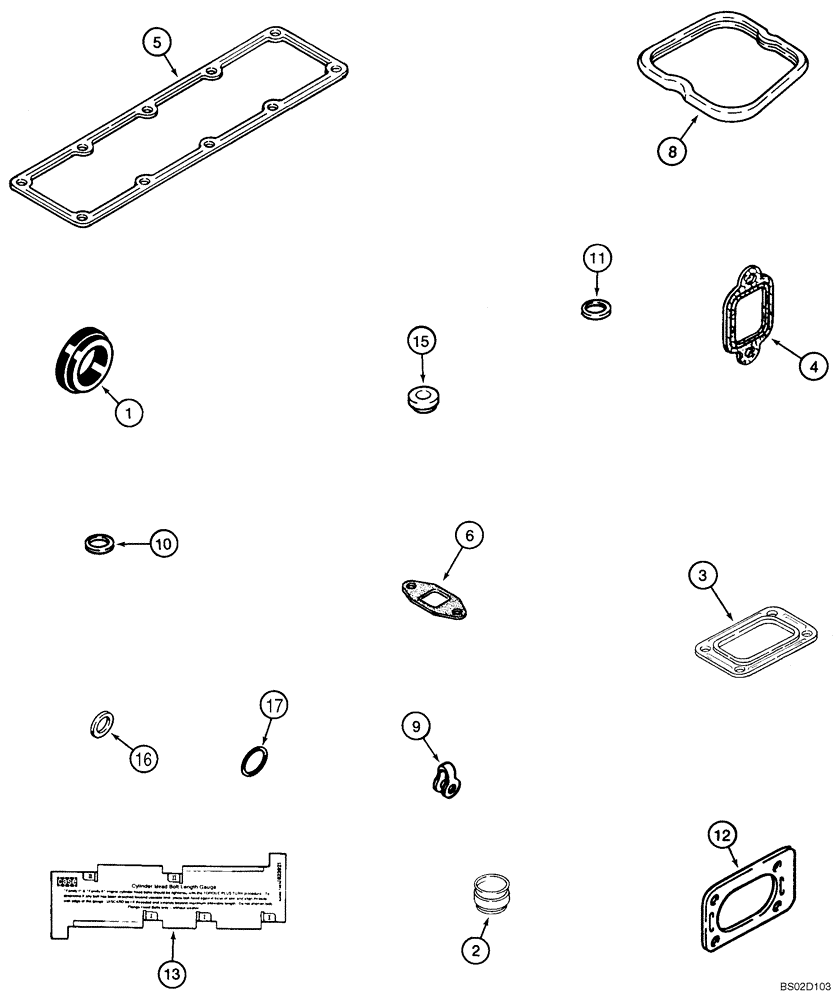

Запчасти Case 850K (02-21) - GASKET KIT, VALVE GRIND - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

87405727

ENGINE GASKET KIT

Incl. Ref 1 - 17; Also Includes (1) J936876 Rectangular Seal and (1) J912220 Exhaust Pipe Gasket, Which Are Not Used In This Application

1шт.

1

J923331

GASKET

See Figure 02-14

1шт.

2

J921640

SEAL

See Figure 02-15

8шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-10

1шт.

4

J927154

GASKET,0.38mm Thk

Manifold; See Figure 02-9A

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; See Figure 02-9A

1шт.

6

J937706

GASKET,0.79mm Thk

See Figure 02-10

1шт.

8

J930906

GASKET

See Figure 02-14

4шт.

9

J903380

SEAL

See Figure 03-05

4шт.

10

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm; See Figure 03-05

4шт.

10

J900808

SEAL

9 mm; If Used

4шт.

10

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm; If Used

4шт.

10

J930324

SEAL

0.5 mm; If Used

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

15.6 ID x 1.68 Wide; See Figure 03-08

4шт.

12

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

13

87404692

GAUGE

Cylinder Head Bolt Length

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-14

4шт.

16

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

7 ID x 13 mm OD; See Figure 03-06

2шт.

17

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1.25 ID x 1.78 Wide; If Used

4шт.
