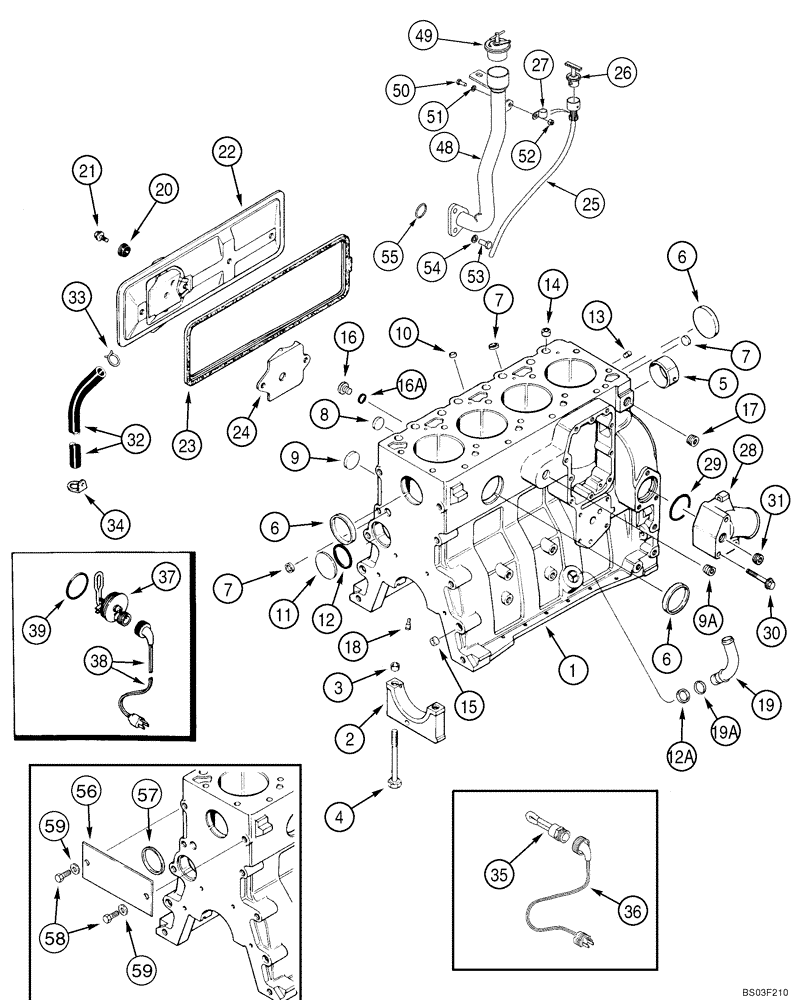

Запчасти Case 850K (02-17) - CYLINDER BLOCK - 4T-390 EMISSIONS CERTIFIED ENGINE (Apr 19 2012 7:55AM) (02) - ENGINE

413438A3

ENGINE

Complete Engine; Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe; Order 234277A2

1шт.

234277A2

BASIC ENGINE

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Non-Balanced. Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

417322A1R

REMAN-BASIC ENGINE

With Balancer. Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

417322A1C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

Block, Short; With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Incl. Ref 1 - 8

1шт.

J933648R

SHORT ENGINE

Block, Short; Remanufactured

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Block, Stripped; Incl. Ref 2 - 8; Order J933220

1шт.

2

J936791

BEARING CAP

Incl. J900068

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

Front

1шт.

6

A77782

PLUG

Expansion, 58 mm

3шт.

J905368

PLUG

Expansion, 9.80 mm; Dipstick Holes

2шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Block Kit; Incl. Ref 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

9a

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. Ref 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

Expansion, 22 mm; Not Used In This Application

3шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. Ref 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

17a

J678921

PLUG

14 mm; Not Used In This Application; Incl. Ref 17B; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Not Used In This Application; Incl. Ref 17D; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18

J937214

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Turbo Drain

1шт.

19a

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

4шт.

21

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

22

J936186

COVER

Incl. Ref 24

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

432937A2

DIPSTICK

Incl. Ref 25, 26

1шт.

25

432939A2

TUBE

Tube; Not Included In Engine Assembly, Purchase Separately; Replaces 319805A2

1шт.

26

432938A2

DIPSTICK

Not Included In Engine Assembly, Purchase Separately; Replaces 319806A2

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Not Included in Engine Assembly, Purchase Separately

1шт.

28

J934877

HYD CONNECTOR

Water Inlet

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

32

J918612

TUBE,360.00 mm

1шт.

33

J904230

CLAMP,25.4mm

1шт.

34

J928989

CLIP

1шт.

REF

INSTRUCTION

120 VOLT ENGINE BLOCK HEATER

1шт.

309651A1

KIT

Coolant Heater, 120V; Incl. Ref 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

REF

INSTRUCTION

120 VOLT ENGINE BLOCK HEATER

1шт.

196803A1

KIT

Coolant Heater, 120V; Incl. Ref 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

Element

1шт.

38

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

39

J910517

O-RING

1шт.

REF

INSTRUCTION

REPAIR KIT

1шт.

A77887

PACKAGE,SERVICE

Repair Kit; Incl. Ref 40 - 47; Not Illustrated

1шт.

40

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Piston; See Figure 02-20

4шт.

41

J934047

PIN,40mm OD x 82.68mm L

4шт.

42

A77465

BEARING SET

4шт.

43

A77405

CRANKSHAFT BEARING

4шт.

44

A77896

BEARING SET

1шт.

45

87405727

ENGINE GASKET KIT

See Figure 02-21

1шт.

46

J283333

CYLINDER HEAD GASKET,2.32mm Thk

1шт.

47

A77673

GASKET KIT

See Figure 02-13

1шт.

48

442102A2

TUBE

Engine Oil Fill; Not Included In Engine Assembly, Purchase Separately

1шт.

49

L115504

CAP

Not Included In Engine Assembly, Purchase Separately

1шт.

50

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Not Included In Engine Assembly, Purchase Separately

1шт.

52

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Included In Engine Assembly/ Purchase Separately

1шт.

53

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Not Included in Engine Assembly, Purchase Separately

2шт.

54

892-11012

LOCK WASHER,M12

Not Included In Engine Assembly, Purchase Separately

2шт.

55

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Not Included In Engine Assembly, Purchase Separately

1шт.

323698A1

KIT

Expansion Plug Repair; Incl. 56 - 59; Not Included In Engine Assembly, Purchase Separately

1шт.

56

322984A1

PLATE

1шт.

57

J910530

SEAL

1шт.

58

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

59

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Not Included In Engine Assembly, Purchase Separately

1шт.
