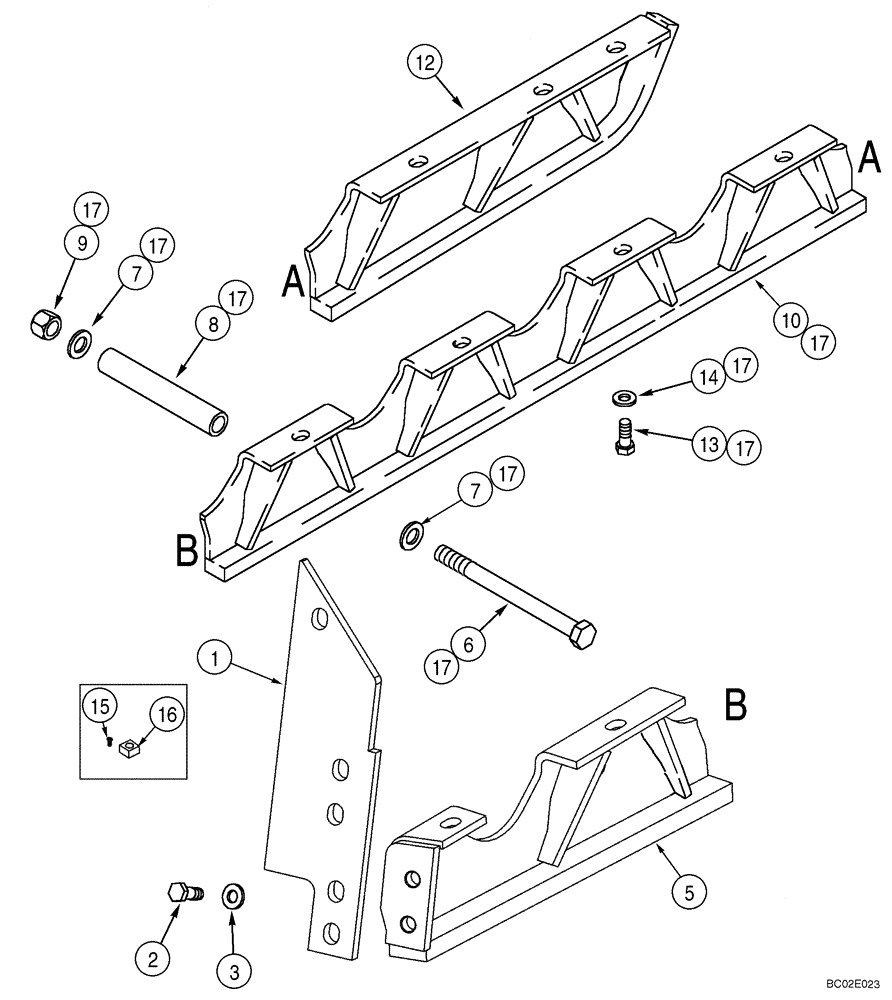

Запчасти Case 850K (05-08) - TRACK GUARDS (11) - TRACKS/STEERING

1

430909A1

REAR COVER

4шт.

2

409-91024

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

LK .625 X 1.5 UNC GR5

20шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

4

429528A1

GUARD ASSY.

Left-Hand Rear; Not Illustrated

2шт.

5

429527A1

GUARD ASSY.

Right-Hand Rear

2шт.

6

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9

8шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

8

141188A1

SPACER

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

10

427054A1

GUARD ASSY.

Center

4шт.

10

431197A2

GUARD ASSY.

850K

4шт.

11

430110A1

GUARD

Left-Hand Front; Not Illustrated

2шт.

11

419377A1

GUARD ASSY.

For 850K

2шт.

12

430111A1

GUARD

Right-Hand Front

2шт.

12

419378A1

GUARD ASSY.

For 850K

2шт.

13

87018373

BOLT,Hex, 1/2" - 13 x 1.25", Gr 5, Full Thd

1/2 x 1-1/4

36шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

36шт.

15

129-860

SQUARE NUT,Sq, 5/8"-11

4шт.

16

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

17

447667A1

KIT

Track Guard Service Kit; Center; Incl. Ref 6 - 10, 13, 14; No Longer Available, Order Components Separately

1шт.
