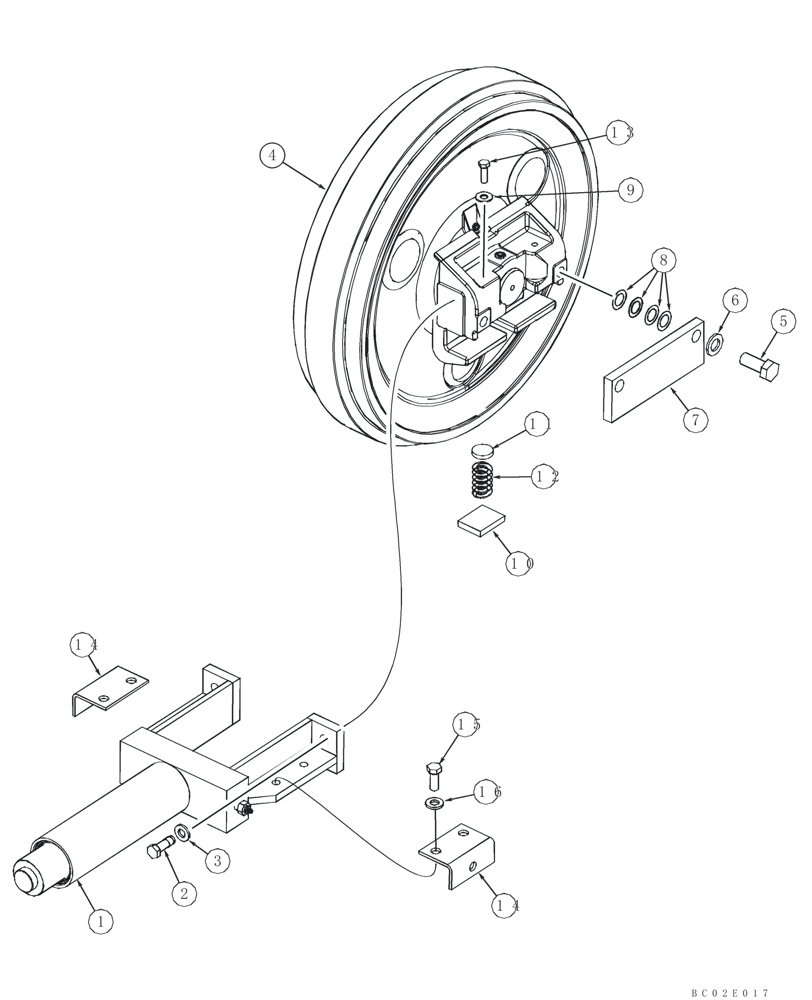

Запчасти Case 850K (05-04[02]) - TRACK ADJUSTER AND IDLER - MOUNTING 750K-850K (11) - TRACKS/STEERING

1

435383A1

YOKE

Adjuster; Right-Hand; See Figure 05-05

1шт.

1a

435384A1

YOKE

Adjuster; Left-Hand; See Figure 05-05; Not Illustrated

1шт.

2

410-9824

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2

2шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

4

419395A1

FRONT IDLER

See Figure 05-06

2шт.

5

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

7

419376A1

TRACK PLATE

4шт.

8

D35268

SHIM,1/32" Thk

1шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8шт.

10

106919A1

SPACER

8шт.

11

R33245

SPRING SEAT

8шт.

12

188866A1

SHOCK ABSORBER

8шт.

13

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

14

430455A1

BRACKET

4шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

144393A3

KIT

Phase 2 Idler; Component Parts Not Serviced Separately; Not Illustrated

1шт.
