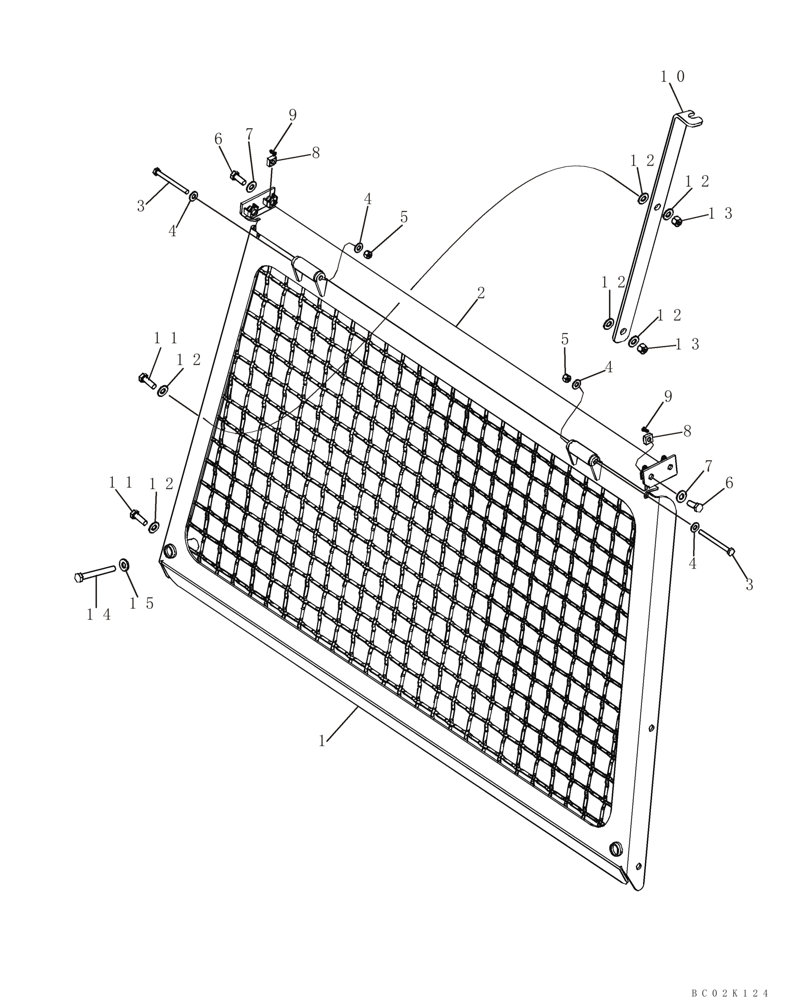

Запчасти Case 850K (09-42) - CAB - SCREEN, REAR (09) - CHASSIS/ATTACHMENTS

1

86984309

SCREEN

Rear Screen

1шт.

2

86984307

SUPPORT

1шт.

3

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

122958A1

SQUARE NUT

Square, M10

4шт.

9

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

10

86984314

SUPPORT

Hold Open

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
