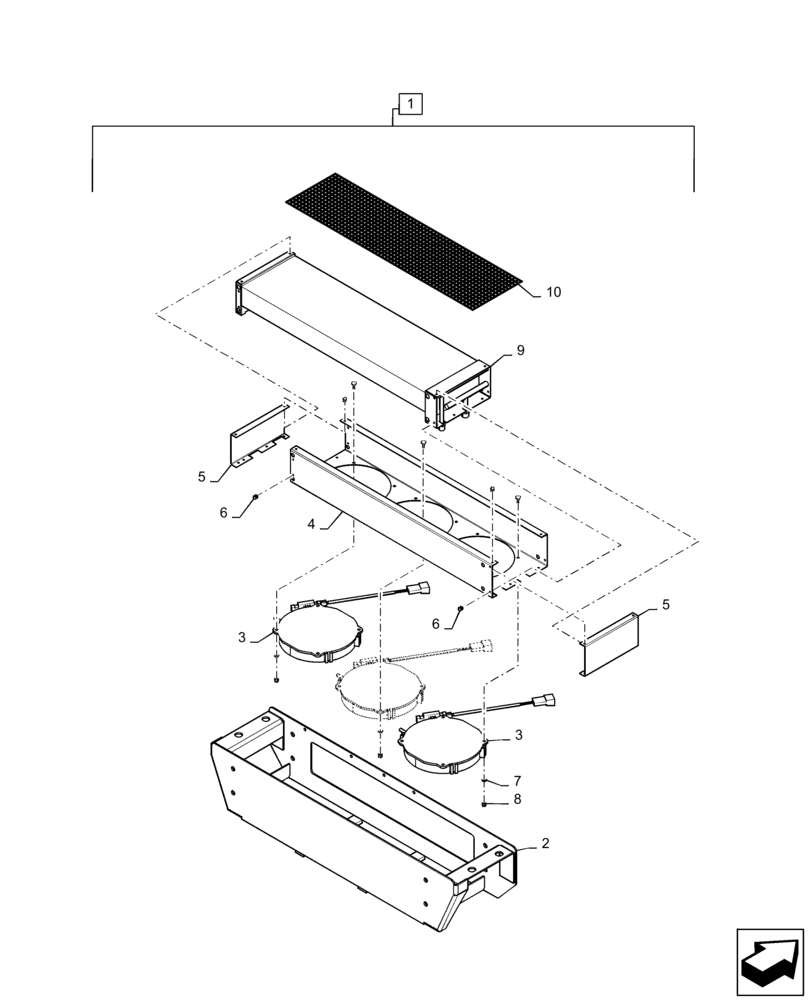

Запчасти Case 850K (09-40[02]) - CAB, AIR CONDITIONER, CONDENSER (09) - CHASSIS/ATTACHMENTS

1

87400724

CONDENSER

Assy, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Condenser Support, Incl W/ Ref 1

1шт.

3

87543791

FAN

Assy, 12V

3шт.

3

87543791R

REMAN-BLOWER

850K SERIES 2 CRAWLER TIER 2 (1/05-)

3шт.

3

87543791C

CORE-BLOWER

Return Number

3шт.

4

87441902

SHROUD

Fan

1шт.

5

87441903

END

Fan Shroud

2шт.

6

71485253

RIVET

Fan Shroud Hardware

16шт.

7

14496304

WASHER

Fan Mounting Hardware

12шт.

8

12574111

NUT,M5 x .8, Cl 8

Fan Mounting Harware

12шт.

9

87441905

CONDENSER

Unit

1шт.

10

87441906

SCREEN

Condenser

1шт.
