Запчасти Case 850K (09-38) - CAB - AIR CONDITIONING CONTROLS, COMPRESSOR AND DRYER LINES (09) - CHASSIS/ATTACHMENTS

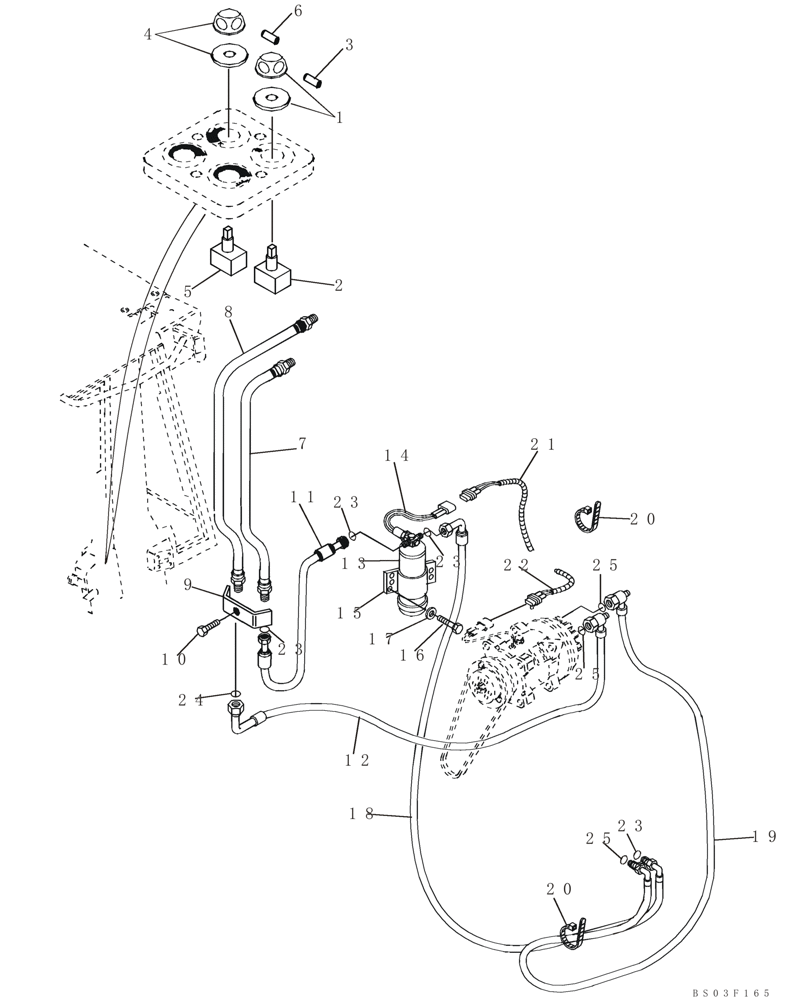

Схема запчастей Case 850K - (09-38) - CAB - AIR CONDITIONING CONTROLS, COMPRESSOR AND DRYER LINES (09) - CHASSIS/ATTACHMENTS
25
8
23
17
5
24
22
2
18
14
10
23
1
23
bs03f165
3
13
21
20
12
25
25
16
9
15
23
4
11
19
6
7
20

Артикул

Название

Примечание

Количество

1

76043653

KNOB

1шт.

2

76049694

SWITCH

Air Conditioning On/Off

1шт.

3

13795820

INSERT

M4 x 14 Dowel Pin

1шт.

4

76043653

KNOB

1шт.

5

87414786

FAN SWITCH

Fan Speed Switch; Integral Part Of 87410122 Cab Main Harness

1шт.

6

13795820

INSERT

M4 x 14 Dowel Pin

1шт.

7

76076702

TUBE

5/8

1шт.

8

76076701

TUBE

3/4

1шт.

9

76076703

BRACKET

1шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

11

76076721

FLEXIBLE HOSE

5/8

1шт.

12

87405602

HOSE

1шт.

76035687

RECEIVER-DRYER

Dryer; Incl. Ref 13, 14

1шт.

13

76035689

FILTER

1шт.

14

76035690

SWITCH

Valve

1шт.

15

79092065

BRACKET

1шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

12645034

WASHER

4шт.

18

87400727

HOSE

Includes (2) 128483A1 O-Rings

1шт.

19

87405603

HOSE

Includes 128485A1 fem end O-Ring, 76049689 male end O-Ring; Also Includes 1250594C1 Valve Core, 122553A1 Sealing Cap

1шт.

20

4982514

CABLE TIE,188mm L

CABLE STRAP Clamp

10шт.

21

87410122

WIRE HARNESS

1шт.

22

418484A1

WIRE HARNESS

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

4шт.

24

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

25a

87431133

DECAL

Oring To Expansion Valve

1шт.

Выбрано товаров: 27
