Запчасти Case 850K (09-34A) - CAB - WASHER, WINDSHIELD (WITH TEE-FITTING, REF 8, IF USED) (09) - CHASSIS/ATTACHMENTS

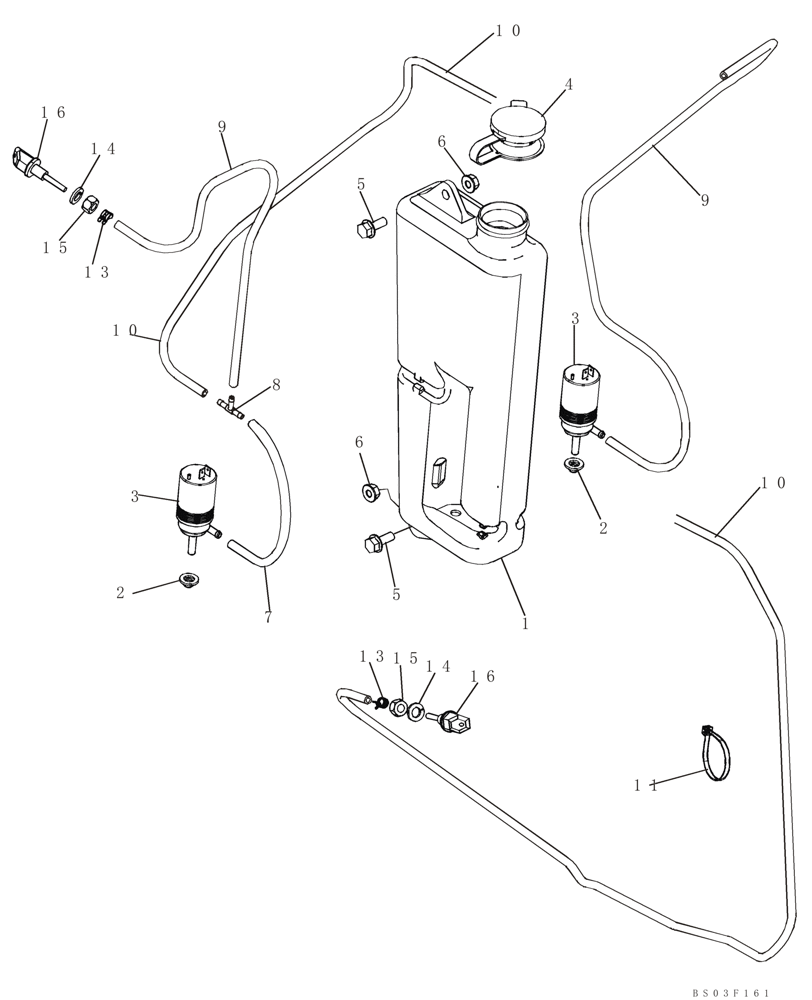

Схема запчастей Case 850K - (09-34A) - CAB - WASHER, WINDSHIELD (WITH TEE-FITTING, REF 8, IF USED) (09) - CHASSIS/ATTACHMENTS
13
5
11
10
5
15
15
bs03f161
9
14
6
1
2
2
10
10
3
13
4
3
7
6
8
14
16
16
9

Артикул

Название

Примечание

Количество

389423A3

RESERVOIR, WINDSHIEL

Tank Assembly; Incl. Ref 1 - 4; Not Available As An Assembly, Order Components

1шт.

1

386721A4

RESERVOIR

Windshield Washer Tank

1шт.

2

196830A1

GROMMET

2шт.

3

E47238

PUMP,12V

Motor

2шт.

4

307130A1

COVER

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

M8 x 20

2шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

7

87409799

HOSE

240 mm (9-1/2 in); Cut From 397154A1; Out To Y-Fitting

1шт.

8

87427778

FITTING,3/16"

Tee; 3/16 in

1шт.

9

87427794

HOSE

700 mm (27-1/2 in); Cut From 397154A1

2шт.

10

87427795

HOSE

3000 mm (118 in); Cut From 397154A1

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

397154A1

HOSE WASHER

100 ft

1шт.

12

87410341

FITTING

Straight Fitting

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

284154A1

NOZZLE,3/8" - 16

Includes A Steel and Rubber Washer, Which Are Not Serviced Separately

2шт.

Выбрано товаров: 18
