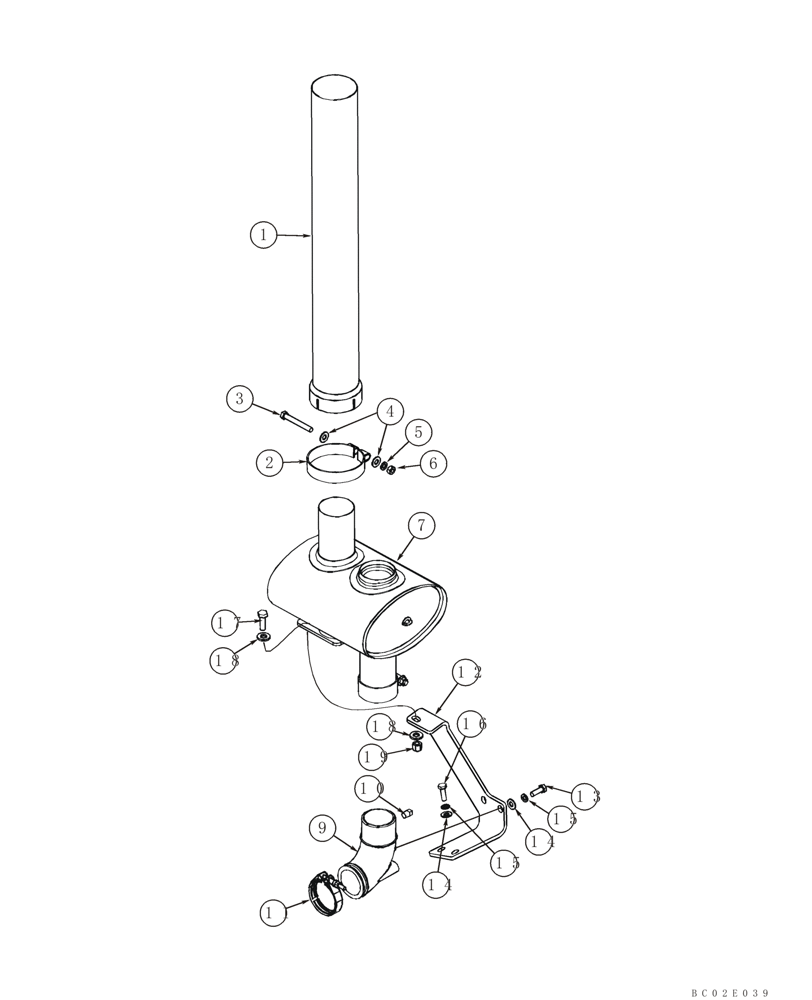

Запчасти Case 850K (02-07) - MUFFLER - EXHAUST SYSTEM 850K (AUG 8 2008 10:11AM) (02) - ENGINE

1

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

R27699

CLAMP,114.3mm

1шт.

3

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

M10 x 90

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 2 mm

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

7

431455A3

MUFFLER

Includes Clamp

1шт.

9

A173623

ELBOW

1шт.

10

217-506

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1/4 PT

1шт.

11

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

12

432018A4

BRACKET, SUPPORTING

1шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 2 mm

4шт.

15

892-11010

LOCK WASHER,M10

4шт.

16

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

17

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
