Запчасти Case 850K (09-24) - CAB OR CANOPY - TILT COMPONENTS (09) - CHASSIS/ATTACHMENTS

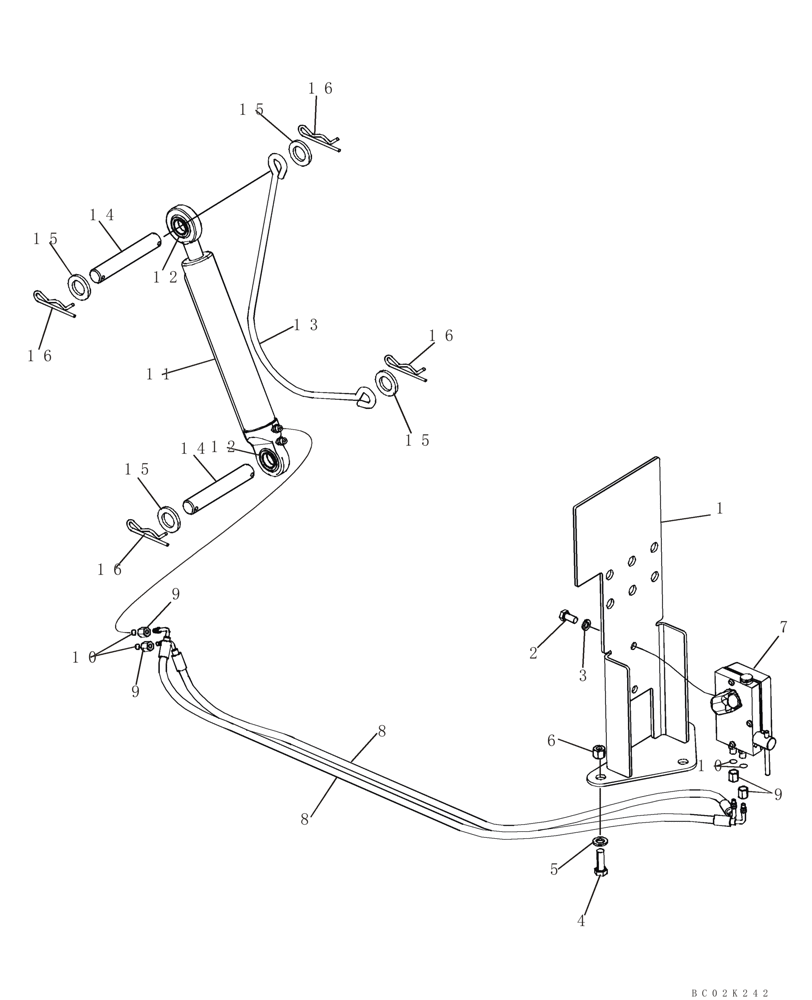

Схема запчастей Case 850K - (09-24) - CAB OR CANOPY - TILT COMPONENTS (09) - CHASSIS/ATTACHMENTS
14
15
15
15
4
16
16
9
9
13
15
8
16
2
12
10
6
bc02k242
16
7
9
3
5
1
11
8
14
10
12

Артикул

Название

Примечание

Количество

1

433002A3

BRACKET, SUPPORTING

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

7

76074723

HYDRAULIC PUMP

Hand Pump, Cab or Canopy Tilt; Component Parts Not Serviced Separately

1шт.

8

79084977

HYDRAULIC HOSE

2шт.

9

11260211

TUBE NUT,M12 x 1.5mm, 8 ZND

4шт.

10

11266411

FERRULE,6mm, Style A

4шт.

11

76074722

HYDRAULIC CYLINDER

Lift; Component Parts Not Serviced Separately

1шт.

12

79068258

WASHER

4шт.

13

79093006

CABLE

Cable

1шт.

14

437227A1

PIN

2шт.

15

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

4шт.

16

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

4шт.

Выбрано товаров: 16
