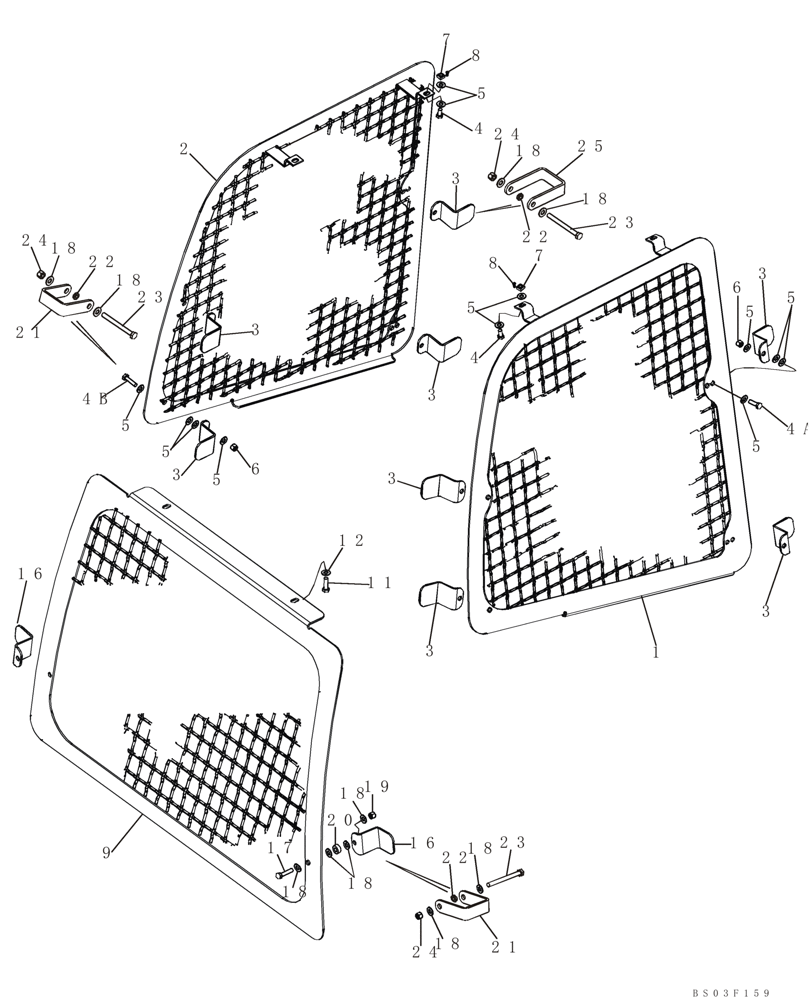

Запчасти Case 850K (09-23) - CANOPY, ROPS - SCREENS (09) - CHASSIS/ATTACHMENTS

1

445108A3

SCREEN

Right-Hand Side

1шт.

2

445109A3

SCREEN

Left-Hand Side

1шт.

3

445104A2

CLAMP BRACKET

No Longer Used, See Ref 21 - 25

8шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4a

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

6шт.

4b

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Right-Hand and Left-Hand Lower Rear Bracket Mounting Only

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

7

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Square, M10

4шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

9

445103A1

SCREEN

Rear

1шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

16

445104A2

CLAMP BRACKET

No Longer Used, See Ref 21 - 24

2шт.

17

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

4шт.

21

87426206

CLAMP

2 For Rear Screen, 6 For Side Screen

8шт.

22

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

10шт.

23

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

10шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

25

87426207

CLAMP

Side Screen

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

36шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

28шт.
