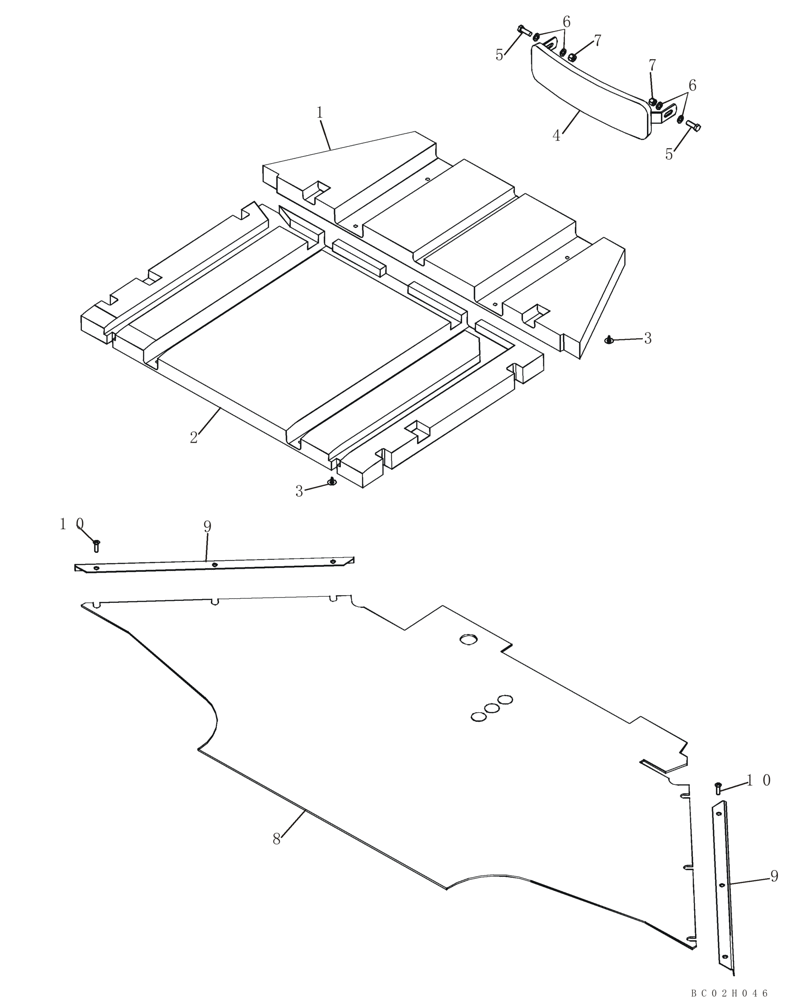

Запчасти Case 850K (09-19) - CANOPY, ROPS - HEADLINER, FLOORMAT AND MIRROR (09) - CHASSIS/ATTACHMENTS

1

443493A1

ROOF LINING

Front ROPS Headliner

1шт.

2

443494A1

ROOF LINING

Rear ROPS Headliner

1шт.

87311636

PLATE

Headliner Retainer; Rear; Not Illustrated

1шт.

87311638

PLATE

Headliner Retainer; Front; Not Illustrated

1шт.

760-14613

SELF-TAP SCREW,Pan Hd, M6.3 x 13

6.3 x 13; Used With Headliner Retainers; Not Illustrated

5шт.

3

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

10шт.

4

367831A1

MIRROR

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

76076737

MAT

Floormat

1шт.

9

76067625

RETAINER

2шт.

10

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
