Запчасти Case 850K (09-14) - SEAT ASSY, MECHANICAL SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS

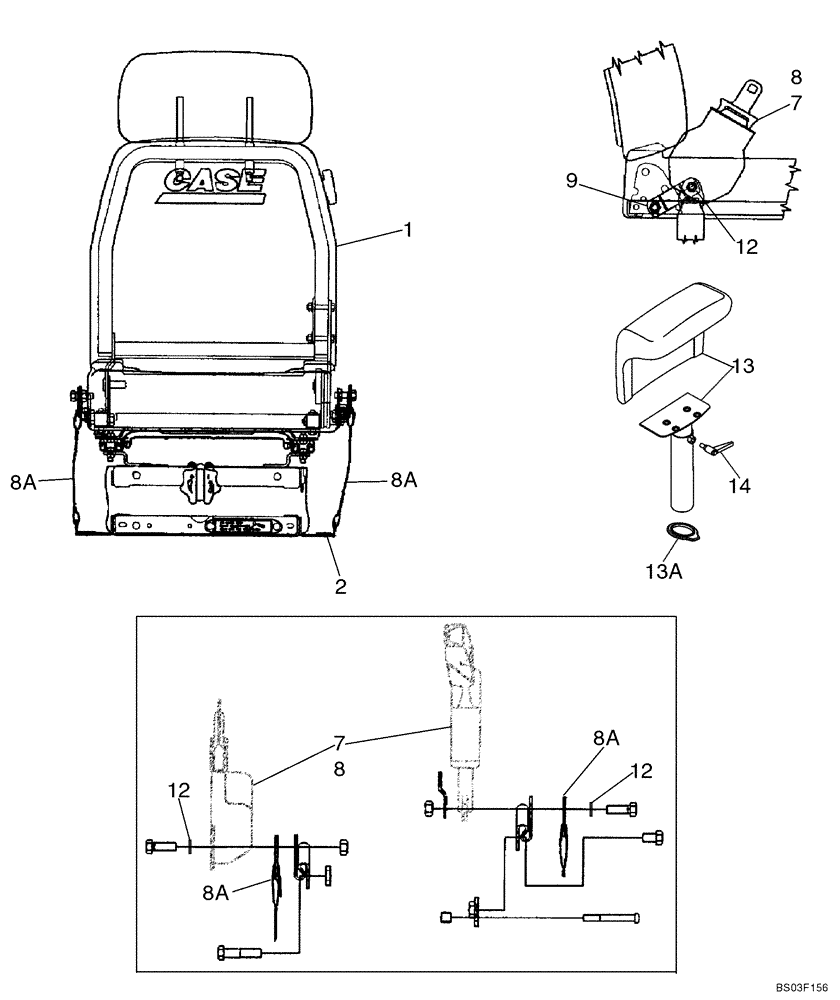

Схема запчастей Case 850K - (09-14) - SEAT ASSY, MECHANICAL SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS
9
8a
8
2
8a
8a
12
13
12
8
8a
12
14
7
1
8
13a

Артикул

Название

Примечание

Количество

1

429468A2

SEAT ASSY.

Mechanical Suspension; Vinyl; See Figure 09-15

1шт.

2

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

M10 x 25

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

Mounting Hardware Supplied with Seat Assy; Replaces R58418

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

Replaces D150377

1шт.

8a

NSS

NOT SOLD SEPARAT

Tether; Included With Ref 7, 8

1шт.

9

D150393

BRACKET

Reinforcement; No Longer Used; Used With D150377

1шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

13

86989674

ARMREST ASSY.

Incl. (1) 87410160 Pad, (1) 86988140 Tube Support, (4) 895-15008 Washer, (4) 832-10408 Nut

2шт.

87410160

ARMREST

1шт.

86988140

SUPPORT TUBE

1шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13a

76067464

SEAL

Seal, Armrest Tube

2шт.

14

76067236

HANDLE

Armrest

2шт.

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 14
