Запчасти Case 850K (09-12) - HOOD AND SIDE PANELS 850K (09) - CHASSIS/ATTACHMENTS

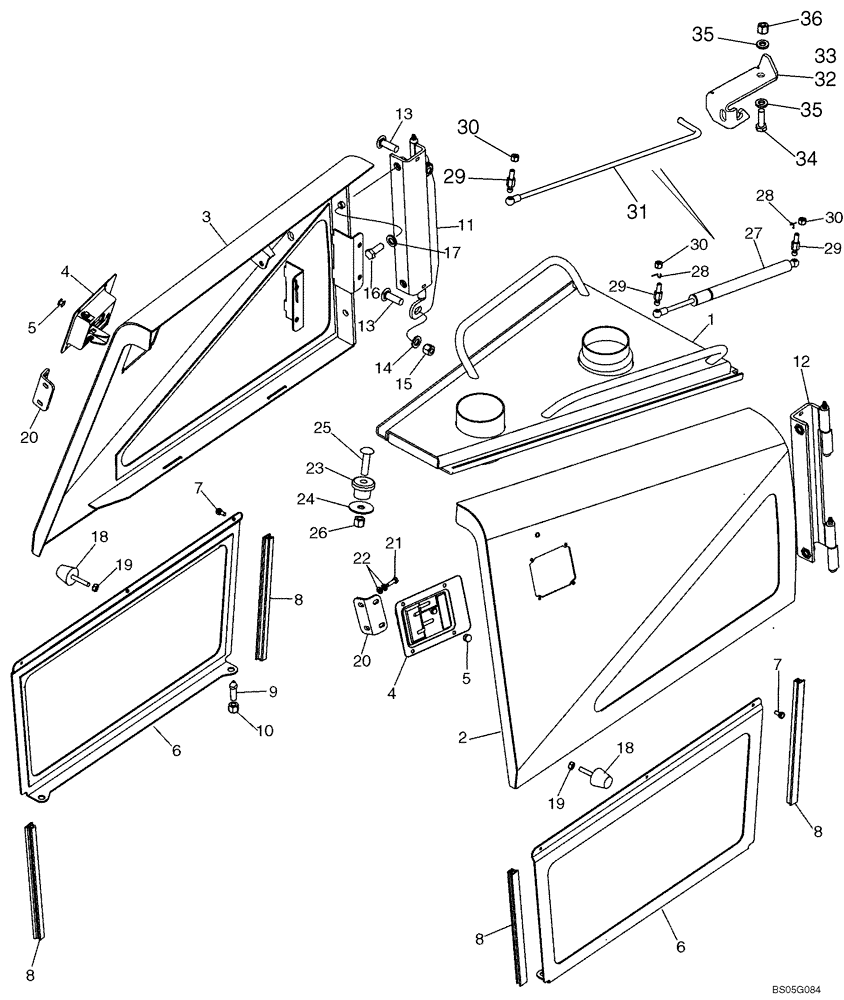

Схема запчастей Case 850K - (09-12) - HOOD AND SIDE PANELS 850K (09) - CHASSIS/ATTACHMENTS
9
19
4
36
31
23
30
1
30
7
2
29
8
35
16
20
29
11
13
26
6
22
5
33
17
29
7
35
15
34
21
20
14
8
28
4
8
27
13
5
18
8
18
24
25
3
30
10
19
28
6
32
12

Артикул

Название

Примечание

Количество

1

87446373

COVER PLATE

1шт.

2

87355873

DOOR ASSY.

Cover; Right-Hand; Incl. Ref 4, 5; Replaces 87420881

1шт.

3

87355872

DOOR ASSY.

Cover; Left-Hand; Incl. Ref 4, 5; Replaces 87420878

1шт.

4

R56221

LATCH

LOCK; Tri/Mark Vendor Part Number 12166-16; Used With 87420881, 87420878 Doors

1шт.

4

87353954

LATCH

LOCK; Tri/Mark Vendor Part Number 18530; Heavy Duty; Used With 87355873, 87355872 Doors

1шт.

5

151-567

RIVET,Pop, 1/4" x .625"

4шт.

6

433146A2

COVER PLATE

Incl. Ref 7

2шт.

7

A161780

BUMPER

3шт.

8

449674A1

RUBBER SEAL,290mm L

4шт.

9

418479A2

PIN

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

11

431707A3

HINGE

Left-Hand

1шт.

12

431708A3

HINGE

Right-Hand

1шт.

13

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

18

346104A1

MOUNTING PARTS

Bumper; 75.13 mm (3 in) Long; Upper and Lower; Some Models Use Two Upper and Two of 87330642 Lower

2-4шт.

18

87330642

BUMPER

59.8 mm (2-3/8 in) Long; Replaces Two 346104A1 75.13 mm (3 in) Long Lower Bumpers Used On Some Models

2шт.

19

425-115

NUT,5/16"-24, G5

4шт.

20

419392A2

RETAINING PLATE

2шт.

21

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

22

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

23

R29799

SHOCK ABSORBER

2шт.

24

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

25

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

2шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

27

87403801

SPRING

If Used

2шт.

28

F44883

CLIP,DIN 71805 - S10

If Used

2-4шт.

29

109498A1

STUD

2-4шт.

30

231-1445

NUT,5/16"-18, GB

2-4шт.

87330423

KIT

Door Strut Kit; Incl. Ref 31 - 36

1шт.

31

87308889

ROD

Door Prop Rod; If Used

2шт.

32

87310136

BRACKET

Right-Hand Bracket; If Used

1шт.

33

87310137

BRACKET

Left-Hand Bracket; If Used

1шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

34

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

If Used; Replaces 627-8025

2шт.

35

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

If Used; Replaces 9 x 17 x 2 mm 896-11008

4шт.

36

86528579

NUT,M8 x 1.25

If Used, Replaces 832-10408

2шт.

Выбрано товаров: 40
