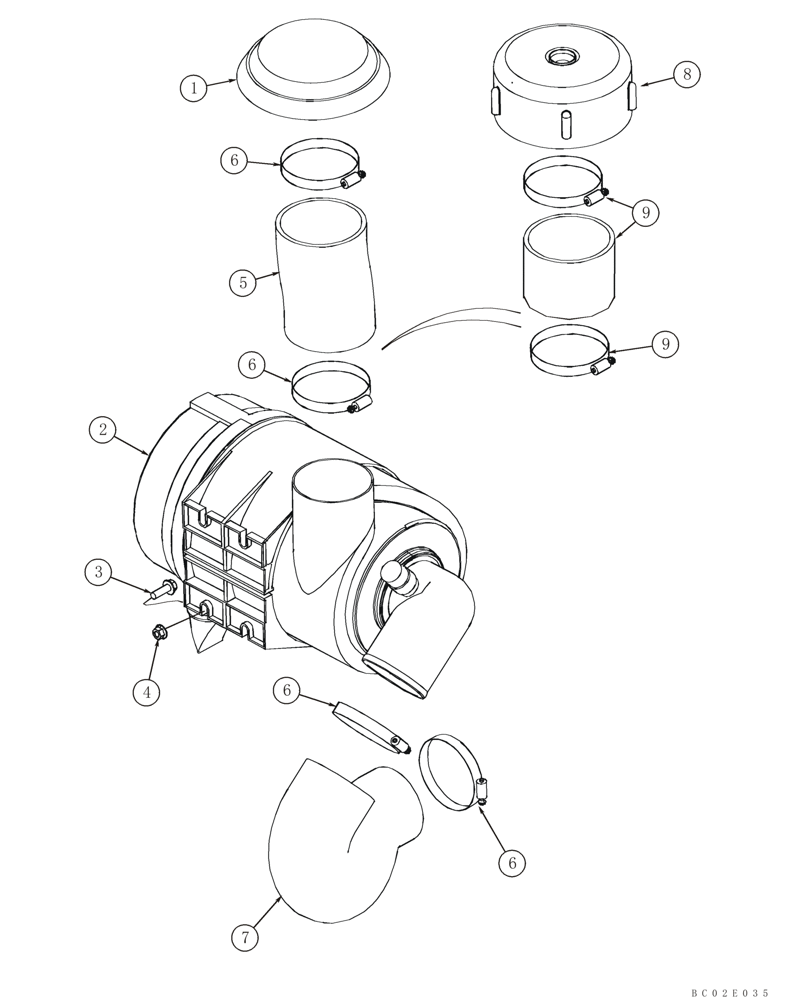

Запчасти Case 850K (02-05) - AIR CLEANER - MOUNTING 850K (MAR 20 2006 1:39PM) (02) - ENGINE

1

L10659

CAP

Includes Clamp

1шт.

2

431456A1

AIR CLEANER

See Figure 02-06 For 850K

1шт.

3

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

4

832-44610

FLANGE NUT,M10 x 1.5, Flg, Cl 10

M10

4шт.

5

429533A1

RADIATOR HOSE,114.30 mm ID x 150.00 mm, SAE J200, SAE J20

1шт.

6

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

4шт.

7

429534A1

INTAKE AIR HOSE,102.00 mm ID x 249.10 mm, SAE J200, SAE J20

1шт.

8

86988018

AIR INTAKE

Includes Clamp; Component Parts Not Serviced Separately; If Used

1шт.

9

86988015

ADAPTER

Rubber

1шт.
