Запчасти Case 850K (09-09) - MOUNTING - FRAME, SEAT AND RESERVOIR (09) - CHASSIS/ATTACHMENTS

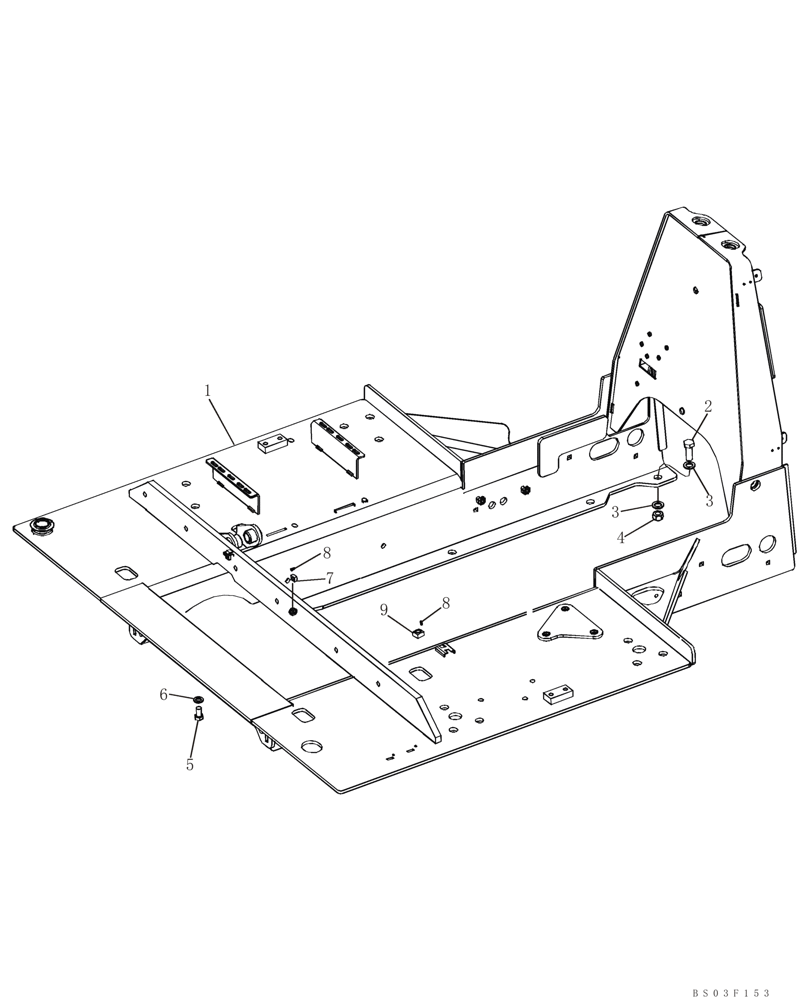

Схема запчастей Case 850K - (09-09) - MOUNTING - FRAME, SEAT AND RESERVOIR (09) - CHASSIS/ATTACHMENTS
8
5
8
2
6
bs03f153
4
1
3
7
9
3

Артикул

Название

Примечание

Количество

1

417312A3

FRAME ASSY

Upper; Seat and Reservoir; Replaces 417312A2

1шт.

2

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

6шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

12шт.

4

829-1420

NUT,M20, Cl 10

6шт.

5

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

5шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

7

122958A1

SQUARE NUT

M10

1шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

9шт.

9

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

M16

8шт.

10

814-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 8.8

Reservoir to frame ( Not Shown)

1шт.

Выбрано товаров: 10
