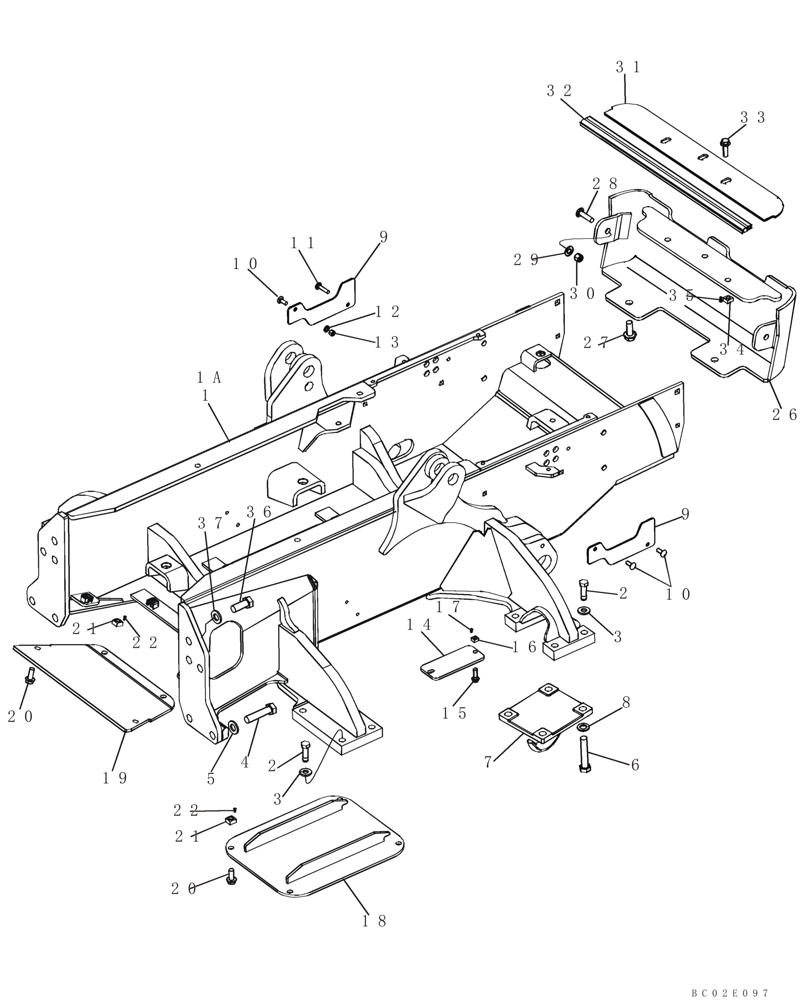

Запчасти Case 850K (09-08) - FRAME, MAIN (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
419658A3
FRAME ASSY
Chassis; Lower; 1448 mm (57 inch) Gauge Long Track (LT) Models
1шт.
1a
419664A3
FRAME ASSY
Chassis; Lower; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Not Illustrated
1шт.
2
410-91240
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8
3/4 x 2-1/2; 8
16шт.
3
496-41081
WASHER,13/16" x 1 3/4" x .219", HDN
16шт.
4
410-91640
BOLT,Hex, 1" - 8 x 2 1/2", Gr 8
1 x 2-1/2; 8
4шт.
5
496-31106
WASHER,1 1/16" x 2" x .219", HDN
1-1/16 x 2 x 7/32
4шт.
6
627-20060
BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd
Used with Ref 7
4шт.
7
450473A1
HOOK
Towing
1шт.
9
436724A1
FIXING PLATE
2шт.
10
711-10030
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
M10 x 30
3шт.
11
711-10050
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8
M10 x 50
1шт.
13
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
14
447897A1
COVER PLATE
Oil Drain
1шт.
15
854-12040
BOLT,Hvy Hex, M12 x 40mm, Cl 10.9
2шт.
16
L116823
NUT
2шт.
17
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
2шт.
18
430629A1
PAN ASSY.
Center
1шт.
19
430625A1
PAN
Rear
1шт.
20
854-16040
BOLT,Hvy Hex, M16 x 40mm, Cl 10.9
M16 x 40
8шт.
21
405737A2
SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A
8шт.
22
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
8шт.
26
431774A1
BUMPER
Front
1шт.
27
854-16040
BOLT,Hvy Hex, M16 x 40mm, Cl 10.9
M16 x 40
2шт.
28
811-12050
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8
2шт.
29
895-15012
WASHER,M12 x 28 x 2.5
13,5 x 28 x 2,5 mm
2шт.
30
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
31
432298A1
PLATE
Lower Radiator; Used With Front Bumper
1шт.
32
432943A1
SEAL
1шт.
33
854-12040
BOLT,Hvy Hex, M12 x 40mm, Cl 10.9
3шт.
34
L116823
NUT
3шт.
35
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
3шт.
36
410-91640
BOLT,Hex, 1" - 8 x 2 1/2", Gr 8
1 x 2-1/2; 8
6шт.
37
496-31106
WASHER,1 1/16" x 2" x .219", HDN
1-1/16 x 2 x 7/32
6шт.
Выбрано товаров: 35
