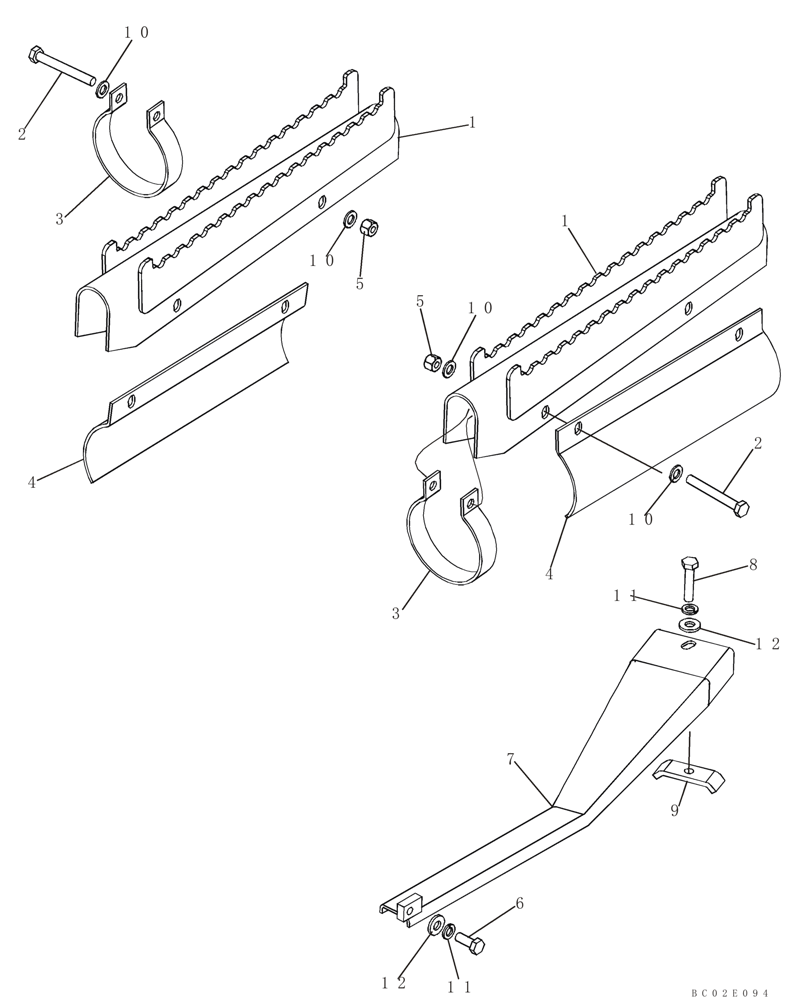

Запчасти Case 850K (09-04) - SHIELDS, DOZER HYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

435447A1

GUARD ASSY.

Hose Shield; Angle Cylinder

2шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

3

132115A1

CLAMP

4шт.

4

123603A1

GUARD

Side Shield; Angle Cylinder

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

419625A1

GUARD ASSY.

Tube Shield; Tilt Cylinder

1шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

9

D40236

CLAMP

1шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
