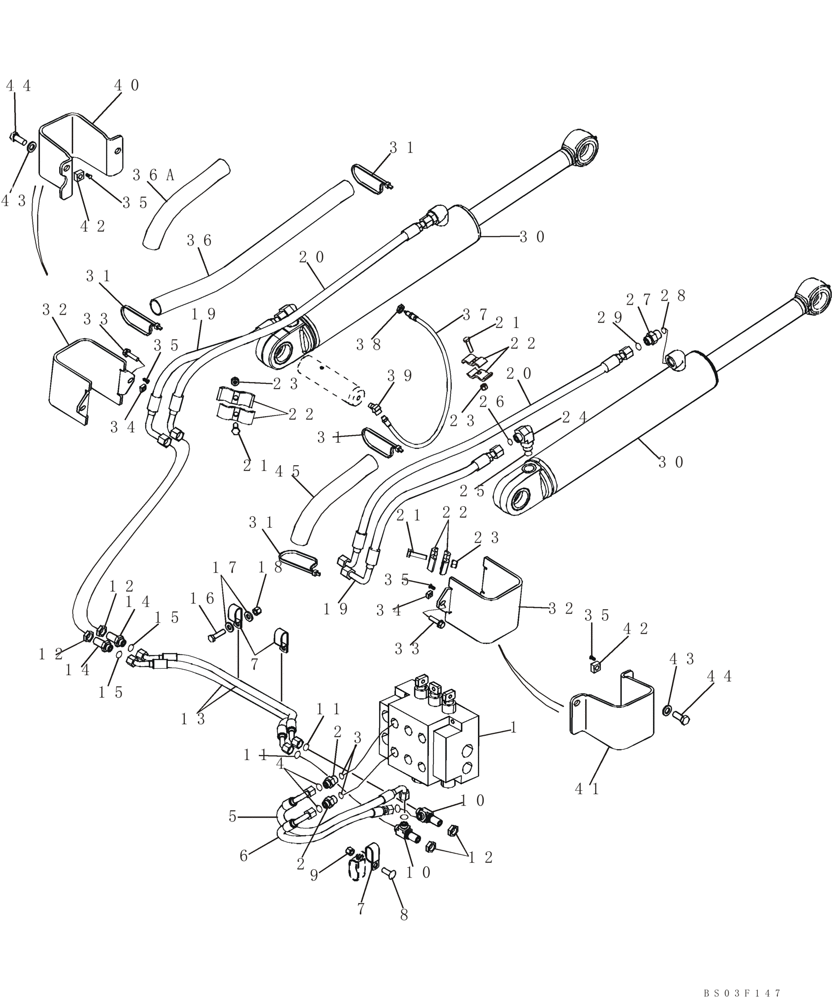

Запчасти Case 850K (08-05) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS

1

418229A2

HYDRAULIC VALVE

Three Spool; See Figure 08-18

1шт.

1

418230A2

HYDRAULIC VALVE

Four Spool; See Figure 08-18

1шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1/2 ORFS x 5/8 ORB; Incl. Ref 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

433794A1

HOSE ASSY.

715 mm (28-3/16 in); Upper Port Of Control Valve

1шт.

6

433795A1

HOSE ASSY.

625 mm (24-5/8 in); Lower Port Of Control Valve

1шт.

7

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

3шт.

8

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

M12 x 35

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Incl. Ref 11

2шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

443359A1

BHD LOCK NUT

4шт.

13

434860A1

HOSE ASSY.

795 mm (31-5/16 in); Crossover

2шт.

14

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

1/2 ORFS; Includes Ref 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

433633A1

HOSE ASSY.

510 mm (20-1/8 in); Closed End

2шт.

20

433632A1

HOSE ASSY.

955 mm (37-5/8 in); Rod End

2шт.

21

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

4шт.

22

434130A1

HOSE CLAMP

8шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

24

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

90 deg, 1/2 ORFS x 5/8 ORB; Incl. Ref 25, 26

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

27

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 28, 29

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

30

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift; See Figure 08-11

2шт.

30

87361535R

REMAN-HYD CYLINDER

650K, 750K, 850K, All CRAWLER (11/02-), Reman for New PN 417854A1

2шт.

30

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

32

87408154

PROTECTIVE COVER

No Longer Available, Order Ref 40 - 44

2шт.

33

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Used with 87408154

4шт.

34

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

4шт.

35

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

36

D134729

SLEEVE

625 mm (24-5/8 in)

2шт.

37

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

Grease; Attaches To Mounting Pin

2шт.

38

F53473

LOCK NUT,1/8-27 NPSM

2шт.

39

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

2шт.

40

87417514

PROTECTIVE COVER

Left Hand

1шт.

41

87417515

PROTECTIVE COVER

Right Hand

1шт.

42

L116823

NUT

4шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

44

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

45

D134729

SLEEVE

2шт.
