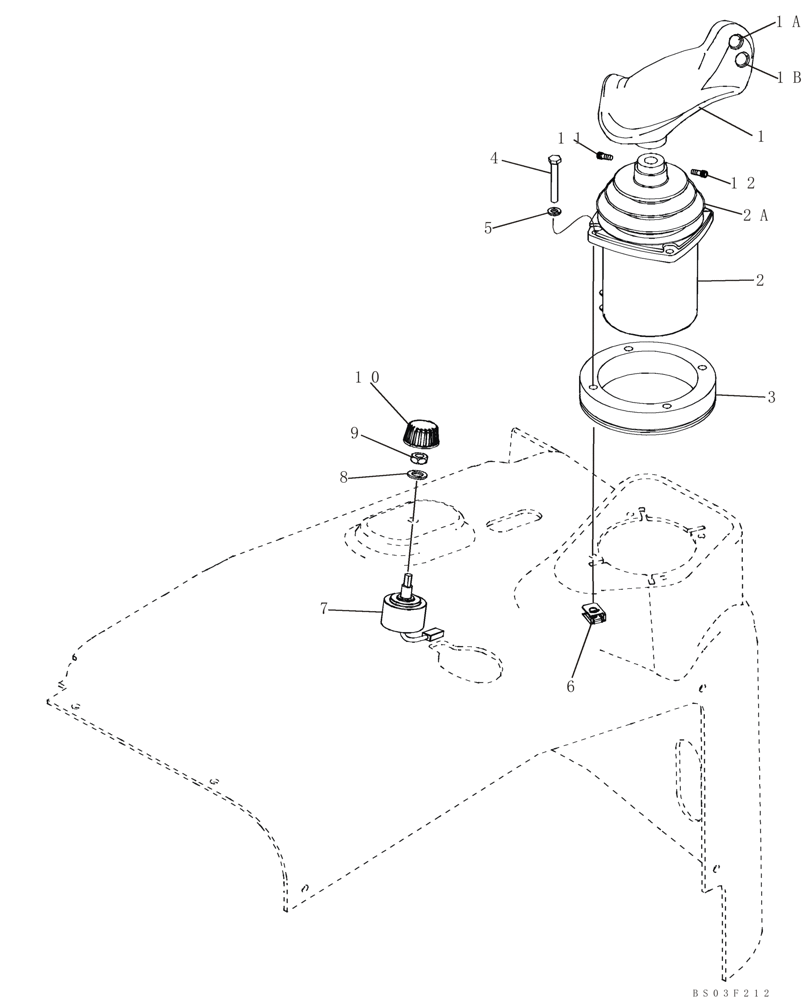

Запчасти Case 850K (06-09) - CONTROLS, FORWARD AND REVERSE (06) - POWER TRAIN

426000A1

CONTROL

Drive Control Handle Assembly; Forward/Neutral/Reverse (FNR); Incl. Ref 1, 2

1шт.

84231557R

REMAN-JOYSTICK

Complete Assembly With Control Unit

1шт.

84231557C

CORE-JOYSTICK

Return Number

1шт.

1

87400253

HANDLE GRIP

Two Button Speed Selection; Incl. 1A, 1B; Grip And Adapter Not Serviced Separately

1шт.

1a

87416895

SWITCH

Push Button; Up

1шт.

1b

87416896

SWITCH

Push Button; Down

1шт.

2 & 2a

87408567

CONTROL UNIT

Attaches to Harness 426946A1 ; Incl. 2, 2A

1шт.

2 & 2a

87389568R

REMAN ELECT CONTROL

650K, 750K, 850K All (11/02-), Reman For New P/N 87408567

1шт.

2 & 2a

87389568C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87408565

Base Assy, Drive Control; Not Serviced Separately, Order 87408567 Control Unit

1шт.

2a

87408566

BOOT

Drive Control

1шт.

3

87408590

MOUNTING PLATE

Drive Control Adapter Plate

1шт.

4

614-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8, Full Thd

M6 x 45

4шт.

5

892-11006

LOCK WASHER,M6

4шт.

6

76047274

NUT,M6 x 1

4шт.

7

87408583

SWITCH ASSY

Reverse Ratio Switch

1шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

187820A1

KNOB

Knob, Reverse Ratio Switch

1шт.

11

878-50610

SET SCREW,Hex Skt, M6 x 10mm, Dog Pt

Use With Locktite 242

1шт.

12

878-1066

SET SCREW,Hex Skt, M6 x 6mm, Cup Pt

Use with Locktite 242

1шт.
