Запчасти Case 850K (06-06) - FINAL DRIVE ASSY, DROP HOUSING (06) - POWER TRAIN

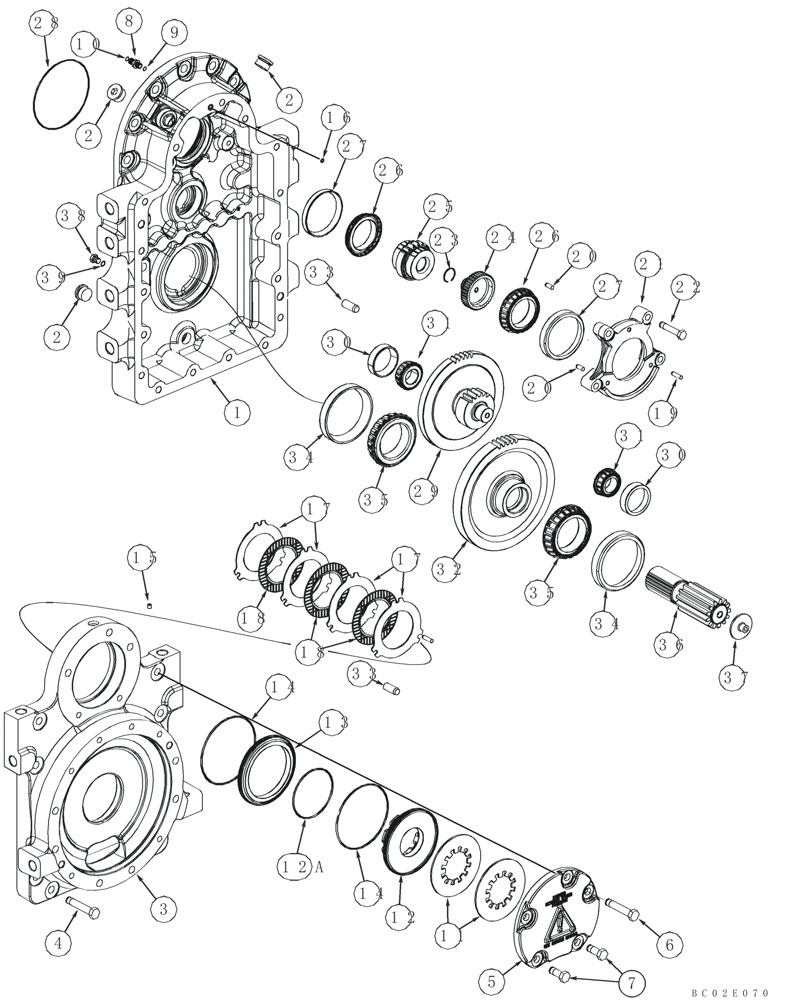

Схема запчастей Case 850K - (06-06) - FINAL DRIVE ASSY, DROP HOUSING (06) - POWER TRAIN
18
22
2
20
33
23
8
24
26
14
13
4
32
16
33
2
35
3
7
bc02e070
18
34
38
17
17
30
12a
27
5
39
37
15
2
34
20
29
30
6
31
26
14
11
36
21
35
28
19
25
31
27
12
10
9
1

Артикул

Название

Примечание

Количество

385250A4

DRIVE ASSY.

Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; Incl. Ref 1 - 39; Also Includes Figure 06-07, Ref 1 - 23, 24 - 27

2шт.

87724629R

REMAN-AXLE

650K, 750K, 850K all (11/02-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

385251A4

DRIVE ASSY.

Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Incl. Ref 1 - 39; Also Includes Figure 06-07, Ref 1 - 22, 23A, 24 - 27

2шт.

87724630R

REMAN-FINAL DRIVE

650K, 750K, 850K, All CRAWLER (11/02-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

1

385207A4

HOUSING

Drop Housing; Use With Loctite 515

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

3/4 ORB Socket Head; Incl. 237-6010

3шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

385209A6

HOUSING

Center Housing; Use With Loctite 515

1шт.

4

608-16085

BOLT,Hex, M16 x 85mm, Cl 10.9

M16 x 85; 10.9

8шт.

5

385235A3

PROTECTIVE COVER

Center Housing; Use With Loctite 515

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

6

608-16085

BOLT,Hex, M16 x 85mm, Cl 10.9

Locking, M16 x 85; 10.9

3шт.

7

608-16040

BOLT,Hex, M16 x 40mm, Cl 10.9

Locking, M16 x 40; 10.9

2шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/8 ORFS x 3/8 ORB; Incl Ref 9, 10

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

11

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

2шт.

12

385248A2

BRAKE PLATE

Piston Brake

1шт.

12a

385236A2

SEALING RING

SEALRING 1/8 x 4-3/4

1шт.

13

385243A2

BRAKE PLATE

Piston

1шт.

14

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

SEALRING 1/8 x 6-1/4

2шт.

15

1345888C1

PLUG

8 mm; Expansion Plug

1шт.

16

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

17

385244A2

BRAKE PLATE

Separator

4шт.

18

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

Clutch Friction Plate

3шт.

19

837-8030

DOWEL,M8 x 30

8 x 30 mm

3шт.

20

837-8020

DOWEL,8mm OD x 20mm L

8 x 20 mm

2шт.

21

385246A4

BEARING HOUSING,96 mm ID

Input Bearing Housing; Use With Loctite 596

1шт.

22

608-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

Locking, M12 x 60; 10.9

4шт.

23

385240A1

RING, LOCKING

RING, LOCK Input Gear Drop Ring

1шт.

24

385239A2

CLUTCH INPUT SHAFT

Use With Loctite 767

1шт.

25

385202A2

GEAR

19 T

1шт.

26

385264A1

BEARING ASSY,66.67mm ID x 17.25mm W

2шт.

27

385265A1

BEARING CUP,103.21mm OD x 11.99mm W

2шт.

28

238-7163

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

1шт.

29

385275A1

GEAR

Dual Countershaft

1шт.

30

385267A1

BEARING CUP

2шт.

31

385266A1

BEARING ASSY,34.92 mm ID x 24.608 mm

2шт.

32

385276A1

GEAR

67 T

1шт.

33

837-16040

DOWEL,M16 x 40

6шт.

34

385269A1

BEARING CUP

2шт.

35

385268A1

BEARING ASSY,82.55 mm ID x 29.769 mm

2шт.

36

385222A1

GEAR SHAFT

13 T; Sun Shaft

1шт.

37

1981270C1

INSERT

Wear

1шт.

38

214389

PLUG,3/4" - 16 ORB

Includes Ref. 39

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
