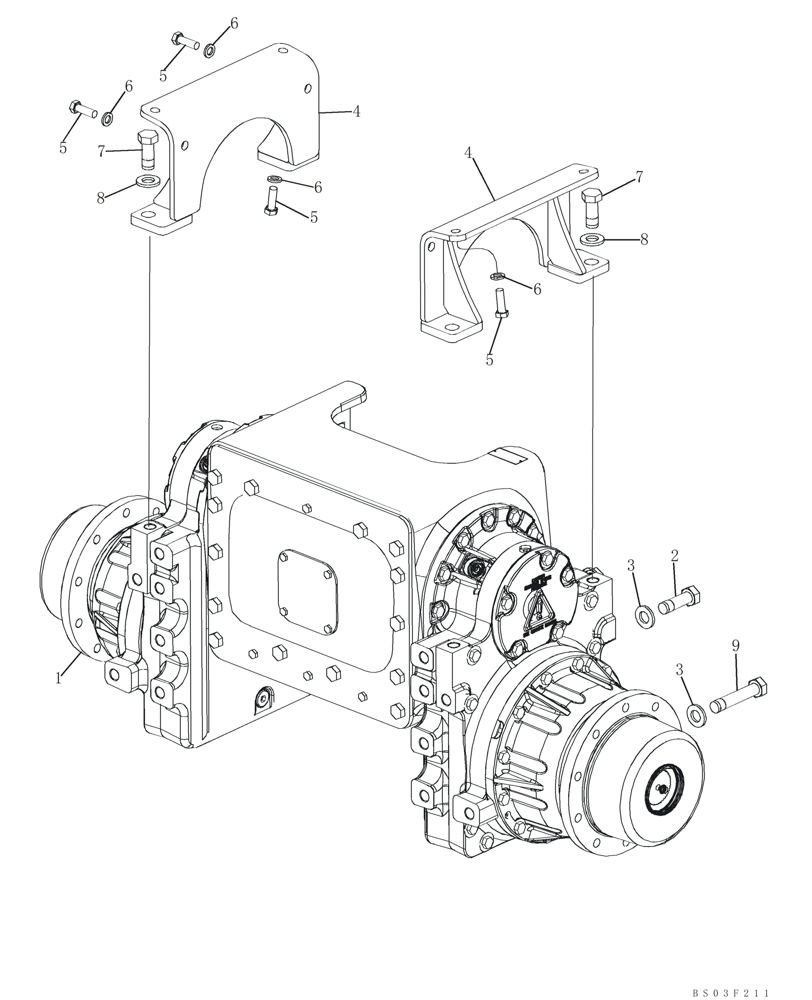

Запчасти Case 850K (06-04) - MOUNTING - FINAL DRIVE (06) - POWER TRAIN

428233A3

TRANSMISSION

Long Track Models; Incl. 385250A4 Final Drive and Parts on Figure 06-05

1шт.

428235A3

TRANSMISSION

Wide Track or Low Ground Pressure Models; Incl. 385251A4 Final Drive and Parts on Figure 06-05

1шт.

1

385250A4

DRIVE ASSY.

Final Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; See Figure 06-06, 06-07

2шт.

87724629R

REMAN-AXLE

650K, 750K, 850K all (11/02-), Reman For New P/N 385250A4

2шт.

87724629C

CORE-AXLE

Return Number

1шт.

1

385251A4

DRIVE ASSY.

Final Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; See Figure 06-06, 06-07

2шт.

87724630R

REMAN-FINAL DRIVE

650K, 750K, 850K, All CRAWLER (11/02-), Reman for new PN 385251A4

2шт.

87724630C

CORE-FINAL DRIVE

Return Number

1шт.

2

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

1 x 2-1/2

6шт.

3

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

10шт.

4

436723A1

SUPPORT ASSY.

2шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Use with Loctite 243

8шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

7

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

1 x 2-1/4

4шт.

8

496-31106

WASHER,1 1/16" x 2" x .219", HDN

1-1/16 x 2 x 7/32

4шт.

9

410-91640

BOLT,Hex, 1" - 8 x 2 1/2", Gr 8

1 x 2-1/2

4шт.
