(08-10) - HYDRAULICS - RIPPER, CONTROL VALVE TO REAR OF TRACTOR

Запчасти Case 850H (08-10) - HYDRAULICS - RIPPER, CONTROL VALVE TO REAR OF TRACTOR (08) - HYDRAULICS

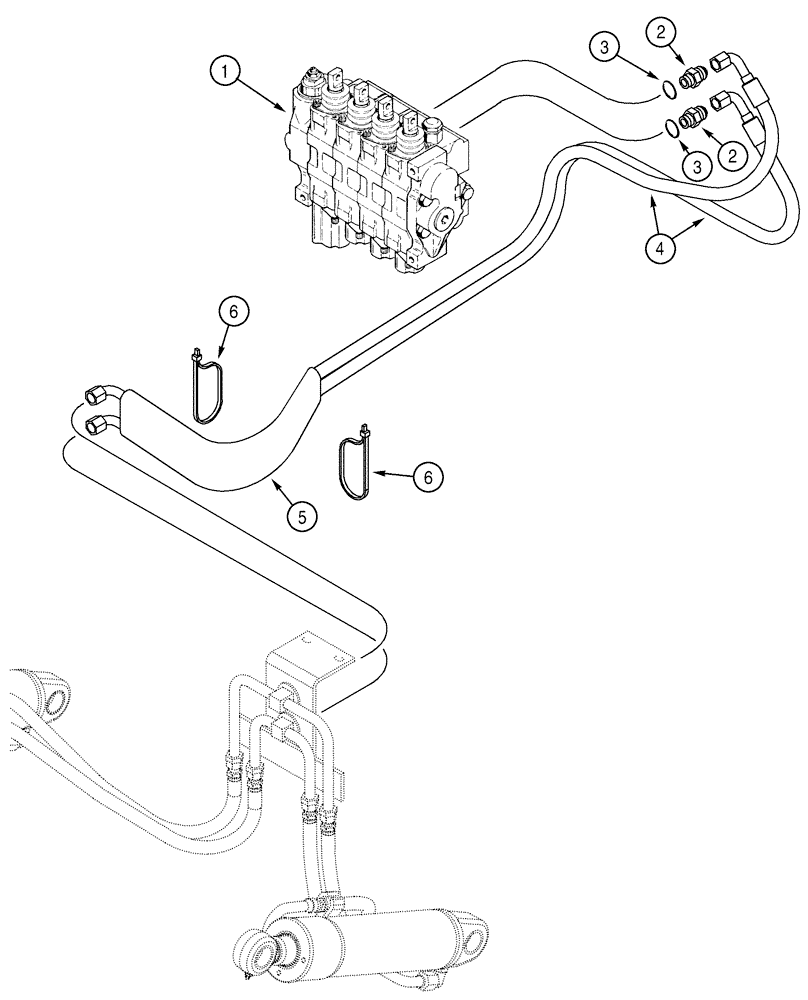

Схема запчастей Case 850H - (08-10) - HYDRAULICS - RIPPER, CONTROL VALVE TO REAR OF TRACTOR (08) - HYDRAULICS
6
2
6
5
3
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

336348A1

VALVE

4 Spool, See figures 8-20 - 8-25

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 3

2шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

4

373422A1

HOSE ASSY.

Control Valve to Rear of Tractor

2шт.

5

142334A1

SLEEVE

hose

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.
