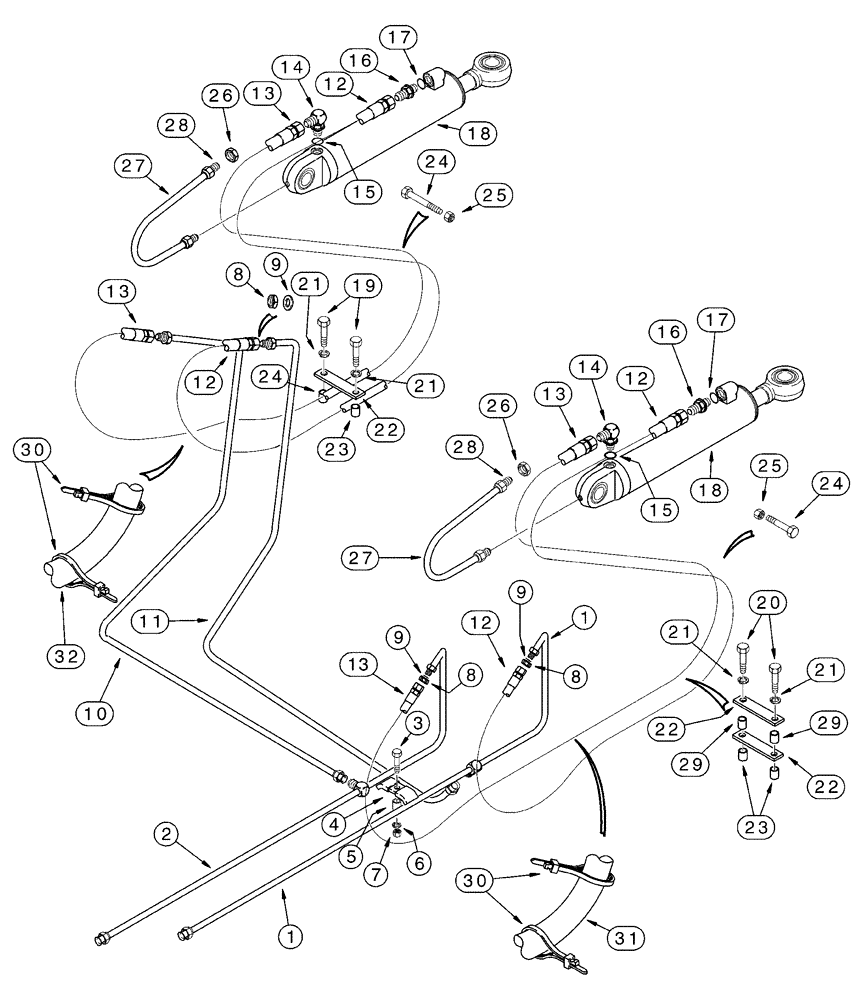

Запчасти Case 850H (08-09) - HYDRAULICS - ANGLE CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
364729A1
HYD TUBE
Right Hand, To Rod End of Cylinder, Lower Port Of Control Valve
1шт.
2
364739A1
HYD TUBE
Right Hand, To Closed End of Cylinder, Upper Port Of Control Valve
1шт.
3
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
4
D138055
CLAMP
1шт.
5
D76208
SPACER
1шт.
6
492-11038
LOCK WASHER,3/8"
1шт.
7
425-106
NUT,3/8"-16, Cl 5
1шт.
8
218-1255
BHD LOCK NUT,Blkhd, 3/4"-16
4шт.
9
D35268
SHIM,1/32" Thk
4шт.
10
119727A1
TUBE
Left Hand
1шт.
11
119729A1
TUBE,12.7 mm OD, 553, 347 mm Length
Left Hand
1шт.
12
R28970
HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2
To Rod End of Cylinder
2шт.
13
2701003-3
HOSE ASSY.
1016 mm (40 inch), To Closed End of Cylinder
2шт.
14
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
Includes: 15
2шт.
15
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
18
190595A2
CYLINDER
89 ID x 396 mm strk, Angle, See figure 8-14
2шт.
18
84135900R
REMAN-HYD CYLINDER
Reman for New PN 190595A2
2шт.
18
84135900C
CORE-HYD CYLINDER
Return Number
2шт.
19
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
20
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
21
492-11038
LOCK WASHER,3/8"
4шт.
22
123171A1
LARGE PLATE
PLATE, LARGE
3шт.
23
123172A1
SPACER
2шт.
24
413-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
3/8 x 3-3/4
2шт.
25
231-1446
NUT,3/8" - 16, Gr 5
2шт.
26
F53473
LOCK NUT,1/8-27 NPSM
1/8 PT, Use Loctite No. 242
2шт.
B17422
LOCTITE
Loctite, No. 242, 50 ml
1шт.
27
L74161
HOSE,3.56mm ID x 533.4mm L, SAE 100R7
533 mm (21 inch)
2шт.
28
219-10
LUBE NIPPLE,1/4" - 28 NPTF
1/4 tpr x 11/16
2шт.
29
D36040
BUSHING
4шт.
30
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
4шт.
31
142306A1
SLEEVE
Four Hose Protection, Right Hand
1шт.
32
142334A1
SLEEVE
Two Hose Protection, Left Hand
1шт.
Выбрано товаров: 35
