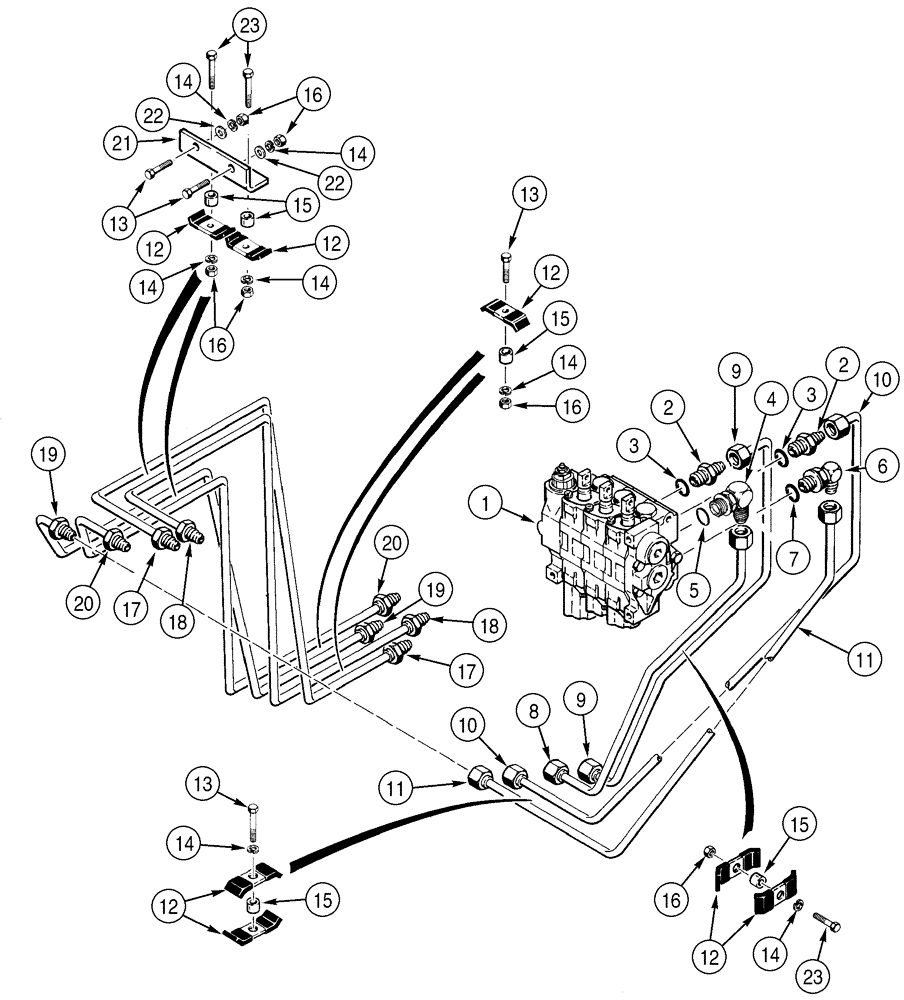

Запчасти Case 850H (08-07) - HYDRAULICS - TILT AND ANGLE CIRCUITS, DESCENDING TUBES AT CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control, See figures 8-19 - 8-20

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Upper Port Of Control Valve, Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D36934

FITTING

3/4 fl x 7/8 adj Or, Lower Port Of Control Valve, Tilt Circuit, Includes: 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Lower Port Of Control Valve, Angle Circuit, Includes 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

R58095

TUBE,0.5" OD

Lower Port Of Control Valve, Tilt Circuit

1шт.

9

R58093

TUBE,0.5" OD

Upper Port Of Control Valve, Tilt Circuit

1шт.

10

R58101

TUBE ASSY.,0.5" OD

Upper Port Of Control Valve, Angle Circuit

1шт.

11

R58103

TUBE ASSY.,0.5" OD

Lower Port Of Control Valve, Angle Circuit

1шт.

12

D138055

CLAMP

8шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

14

492-11038

LOCK WASHER,3/8"

8шт.

15

D76208

SPACER

6шт.

16

425-106

NUT,3/8"-16, Cl 5

7шт.

17

101374A1

TUBE,12.7 mm OD, 552, 490 mm Length

Lower Port Of Control Valve, Tilt Circuit

1шт.

18

101370A1

TUBE,12.7 mm OD, 571, 490 mm Length

Upper Port Of Control Valve, Tilt Circuit

1шт.

19

101378A1

TUBE,12.7 mm OD, 621, 620 mm Length

Lower Port Of Control Valve, Angle Circuit

1шт.

20

101376A1

TUBE,12.7 mm OD, 354, 640 mm Length

Upper Port Of Control Valve, Angle Circuit

1шт.

21

R58842

BRACKET

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.
